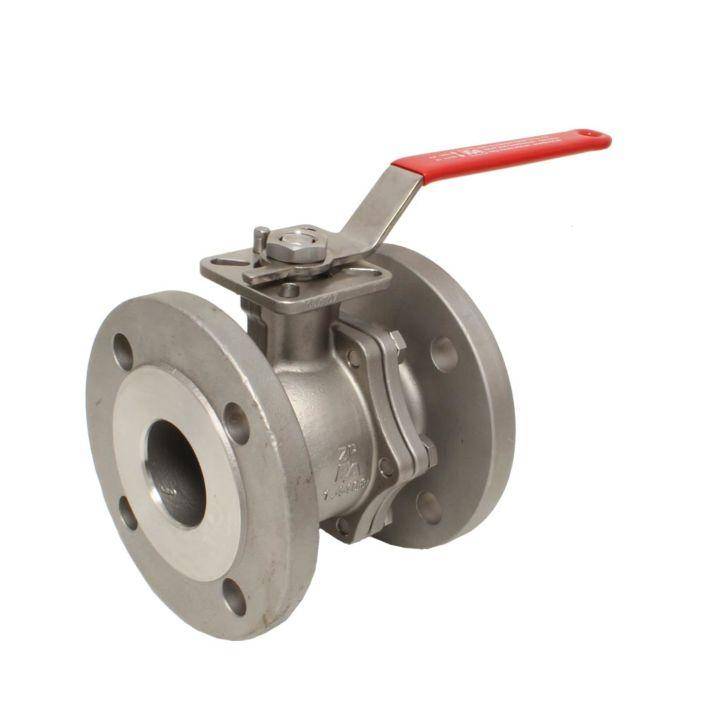

Шаровой кран END Armaturen ZP311007

2-way stainless steel ball valve for shut-off of inert gases and liquids. The body is made of a two-part screwed body construction with full cylindrical bore.The ball valve is stamped conform to AD leaflet A4, DN15 ... DN80 with Fire safe approval (from DN100 Fire safe design), anti-static device and is TA-Luft certified conform with DIN EN ISO 15848-1 with following data:

• Test pressure: max. 40bar
• Test temperature: 80°C
• Endurance class: CO3
• Tightness class: AH

The mounting plate according to ISO 5211 enables a direct or distanced mounting of pneumatic or electric rotary actuators, resulting in an extremely compact and functional unit:Features:

• Face to face confirm with standard EN 558-1 row 27
• Mounting pad for actuator with two scribed circles
• Handle lockable in open and close position (optional hand lever set required)
• Stem seals with spring washer set and lock plate, maintenance free

Operation by rotation of the handle through 90°.For higher temperatures above +80°C please refer to the Pressure-Temperature-Diagram in the data sheet.The ball valve is available in many variants and designs and can be ordered online in our shop:

• stainless steel handle set
• direct mounted limit switches
• direct mounted pneumatically or electrically actuators

For the use of the ball valve in explosive atmospheres according to Directive 2014/34/EU, a special ATEX version is also available, which can also be automated by means of actuators upon request.

SKU	ZP311007
Description	Ball valve DN50, PN16 / 40, full bore, Stainless steel 1.4408, PTFE FKM, ISO5211, EN558-2
Weight [kg]	8.976000
Approvales	TA Luft
Ball material	Stainless steel
Nominal size	DN050
Body material	Stainless Steel
Body material	Edelstahl
Seals material	PTFE
Stem seals material	PTFE/FKM/Graphit
Operation	Hand lever
Execution	DIN/EN-length
Connection type	Flange Connection
Connection size	DN50
Nominal pressure min. [bar]	0
Nominal pressure max. [bar]	40
Test pressure PT [bar]	60
Temperature range min. [°C]	0
Temperature range max. [°C]	+80
Media temperature min. [°C]	-30
Media temperature max. [°C]	+180
Gehäusedesign	2-teilig
