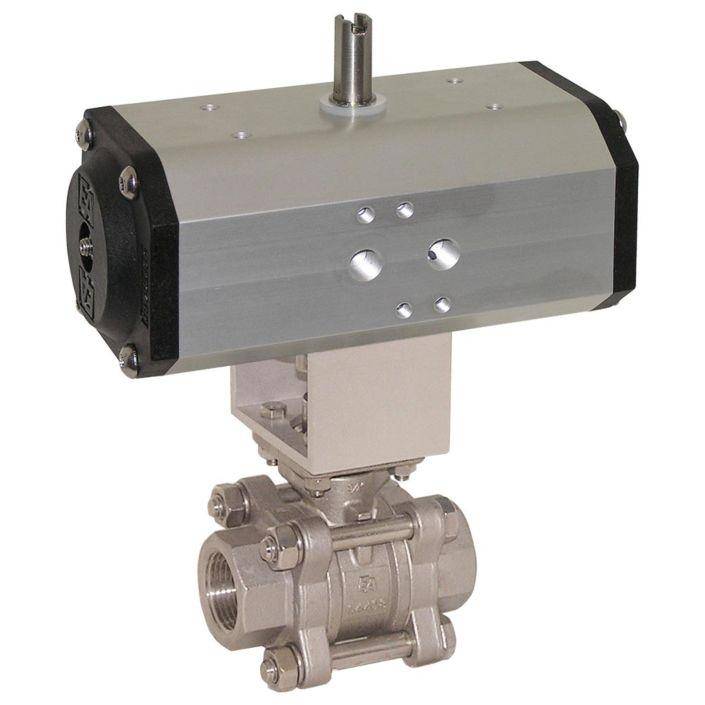

Шаровой кран END Armaturen ZA310066/HT-EE631002

2-way stainless steel ball valve for shut-off of inert gases and liquids. The body is made of a three-part screwed body construction with full cylindrical bore. Due to the self-adjusting, multi-part stem seal, the ball valve is maintenance-free. The ball valve is stamped conform to AD approval and has a fire-safe certification and an anti-static device. A TA-Luft approval is in preparation.The mounting plate according to ISO 5211 enables a direct or distanced mounting of the pneumatic actuators, resulting in an extremely compact and functional unit. Due to the twin-piston system the force developed by the counter-running pistons is transmitted to one common pinion via two tooth racks solidly connected with the pistons. This principle ensures a linear torque transmission along the entire stroke.The ball valve in this temperature version has a ball with pressure compensation bore and carbon fiber reinforced seals. The actuator has special, high-temperature-resistant body caps and seals. The actuator is mounted at a distance to dissipate temperatures and provide space for pipe insulation.The function of this ball valve actuator unit is pneumatically single-acting with spring return: open by air-pressure, closed by spring force (NC). Further information can be found in our technical portal. The actuator is completely assembled in our factory, adjusted and subjected to a functional test before delivery.Features:

• Mounting pad for actuator with two scribed circles
• Simple, standardized assembly of extensions, signal transmitters or control devices conform with EN 12116 (ISO5211)
• Stem seals with spring washer set and lock plate, maintenance free
• Body parts with centering grooved and tongued, for ease assembly (e.g. after welding)

For higher temperatures above +80°C please refer to the Pressure-Temperature-Diagram in the data sheet.The ball valve is available in many variants and designs and can be ordered online in our shop:

• two sides female threaded connection
• two sides welded connection
• cavity-free sealing system
• direct mounted limit switches and solenoid valves

For the use of the ball valve in explosive atmospheres according to Directive 2014/34/EU, a special ATEX version is also available.

SKU	ZA310066/HT-EE631002
Description	Ball valve-ZA / HT, DN40-Weld.,with drive EE100, Stainless steel / PTFE FKM, spring return
Weight [kg]	11.170000
Nominal size	DN040
Body material	Stainless Steel
Function	single acting
Body material	Edelstahl
Seals material	PTFE carbon-reinforced (Temperature)
Stem seals material	PTFE/FKM/Graphit
Operation	pneumatic - single acting
Connection type	Welding Connection DIN3239
Connection size	DN32
Nominal pressure min. [bar]	0
Nominal pressure max. [bar]	16
Test pressure PT [bar]	24
Temperature range min. [°C]	-20
Temperature range max. [°C]	+140
Media temperature min. [°C]	-30
Media temperature max. [°C]	+196
Gehäusedesign	3-teilig
