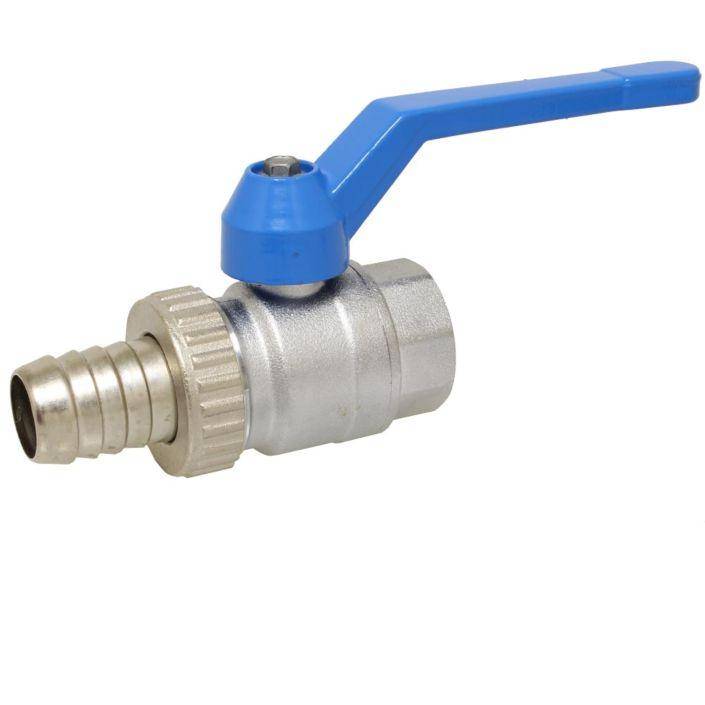

Шаровой кран END Armaturen TV111423
В продаже Шаровые краны END-Armaturen Шаровой кран END Armaturen TV111423 оптом и в розницу. Нашли дешевле? Предоставьте свою цену, Мы сформируем более выгодное предложение. При заказе от 3000р., доставка по Самаре - БЕСПЛАТНО! Возможна отправка товара в любую точку РФ транспортной компанией.
Цена:
Технические характеристики
2-way ball valve with hose coupler made of brass for shut-off of neutral gases and liquids. The body consists of a two screwed body construction with a full cylindrical bore. The hand lever is made of an aluminum alloy.To actuate the ball valve into the OPEN or CLOSED position, the hand lever is turned through 90°.For higher temperature ranges over +80°C please refer to the Pressure-Temperature-range in the data sheet.
| SKU | TV111423 |
|---|---|
| Description | Ball valve 1/2 with hose, brass / PTFE FKM, full bore |
| Weight [kg] | 0.222000 |
| Nominal size | 1/2 |
| Body material | Brass |
| Body material | 0 |
| Seals material | PTFE |
| Stem seals material | FKM |
| Operation | Hand lever |
| Connection type | female / hose nipple |
| Connection size | 1/2 |
| Nominal pressure min. [bar] | 0 |
| Nominal pressure max. [bar] | 25 |
| Test pressure PT [bar] | 37,5 |
| Temperature range min. [°C] | 0 |
| Temperature range max. [°C] | +80 |
| Media temperature min. [°C] | -20 |
| Media temperature max. [°C] | +120 |
| Gehäusedesign | 2-teilig |
