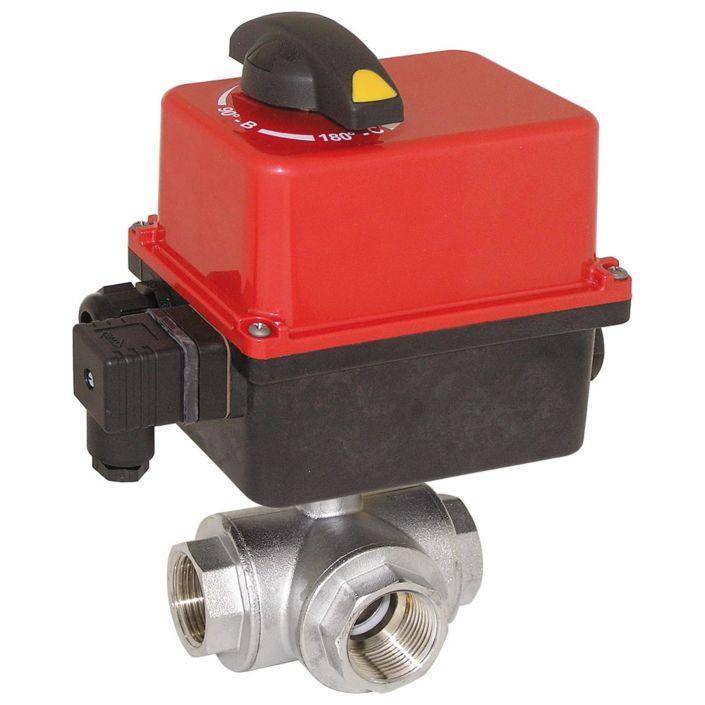

Шаровой кран END Armaturen TN111522-RT201410
В продаже Шаровые краны END-Armaturen Шаровой кран END Armaturen TN111522-RT201410 оптом и в розницу. Нашли дешевле? Предоставьте свою цену, Мы сформируем более выгодное предложение. При заказе от 3000р., доставка по Самаре - БЕСПЛАТНО! Возможна отправка товара в любую точку РФ транспортной компанией.
Цена:
Технические характеристики
3-way ball valve made of brass for shut-off of neutral gases and liquids (no steam) with directly mounted alectric actuator. The body consists of a multi-part screwed body construction, not crossover-free, sealed on all ports, with reduced bore and all-sided female thread. The mounting pad according to ISO 5211 allows direct assembly of pneumatic or electric actuators.The operation of the ball valve ensued by 90° rotation of the actuator. An actuator with 180° rotation angle and three switching positions 0°-90°-180° is also available on request. If not otherwise stated, we will provide switching position 1 (T-configuration) or 5 (L-configuration) at driven ball valves.Operation methods:Electric actuator with a rotation angle of 90°. Plastic housing with optical position indicator and manual override by outgoing shaft. With 1-wire control (integrated relay, Fail-close) for OPEN-CLOSE control or 2-wire control for 3-point control. Optical position indicator.For higher temperature ranges over +80°C please refer to the Pressure-Temperature-diagram in the data sheet.The ball valve is also available in many versions in our shop.
- L- or T- configuration
- manually operated
- manually operated with mounted limit switch box
- pneumatically operated with mounted pneumatic actuator, double or single acting
- electrically operated with mounted electric actuator
| SKU | TN111522-RT201410 |
|---|---|
| Description | Ball valve-TN, 3/8 , with drive-RT20-007, brass/PTFE-FKM, T-bore, 230V 50Hz, run-time9 ... 1 |
| Weight [kg] | 1.850000 |
| Voltage | 230V AC |
| Nominal size | 3/8 |
| Body material | Brass |
| Body material | Messing verchromt |
| Seals material | PTFE |
| Stem seals material | PTFE/FKM |
| Operation | Electrically |
| Execution | T-configuration |
| Connection type | female / female |
| Connection size | 3/8 |
| Nominal pressure min. [bar] | 0 |
| Nominal pressure max. [bar] | 16 |
| Test pressure PT [bar] | 24 |
| Temperature range min. [°C] | -10 |
| Temperature range max. [°C] | +55 |
| Media temperature min. [°C] | -20 |
| Media temperature max. [°C] | +120 |
| Gehäusedesign | 4-teilig |
