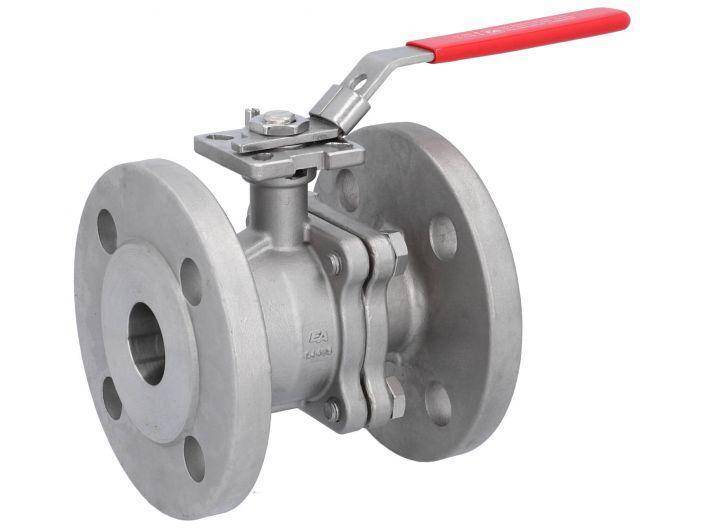

Шаровой кран END Armaturen MP311005
В продаже Шаровые краны END-Armaturen Шаровой кран END Armaturen MP311005 оптом и в розницу. Нашли дешевле? Предоставьте свою цену, Мы сформируем более выгодное предложение. При заказе от 3000р., доставка по Самаре - БЕСПЛАТНО! Возможна отправка товара в любую точку РФ транспортной компанией.
Цена:
Технические характеристики
2-way stainless steel ball valve for shut-off of inert gases and liquids. The body is made of a two-part screwed body construction with full cylindrical bore.The ball valve is stamped conform to AD leaflet A4.The mounting plate according to ISO 5211 enables a direct or distanced mounting of pneumatic or electric rotary actuators, resulting in an extremely compact and functional unit:Features:
- Face to face confirm with standard EN 558-1 row 27
- Mounting pad for actuator with two scribed circles
- Handle lockable in open and close position
- Stem seals with spring washer set and lock plate, maintenance free
- direct mounted limit switches
- direct mounted pneumatically or electrically actuators
| SKU | MP311005 |
|---|---|
| Description | Ball valve DN32, PN40, length EN558-27, Stainless steel 1.4408, PTFE FKM, ISO5211 |
| Weight [kg] | 5.180000 |
| Ball material | Stainless steel |
| Nominal size | DN032 |
| Body material | Stainless Steel |
| Body material | Edelstahl |
| Seals material | PTFE |
| Stem seals material | PTFE/FKM |
| Operation | Hand lever |
| Execution | DIN/EN-length |
| Connection type | Flange Connection |
| Connection size | DN32 |
| Nominal pressure min. [bar] | 0 |
| Nominal pressure max. [bar] | 40 |
| Test pressure PT [bar] | 60 |
| Temperature range min. [°C] | 0 |
| Temperature range max. [°C] | +80 |
| Media temperature min. [°C] | -25 |
| Media temperature max. [°C] | +180 |
| Gehäusedesign | 2-teilig |
