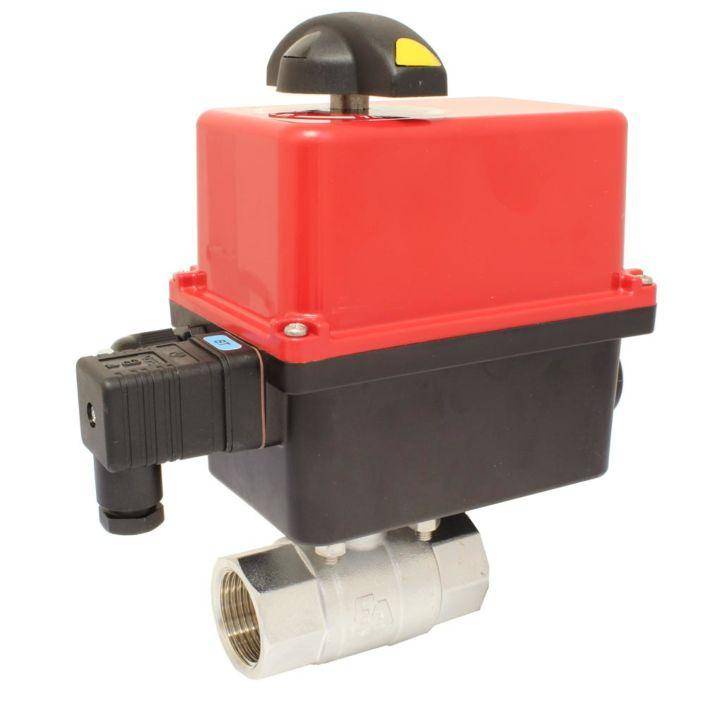

Шаровой кран END Armaturen KA110027-RT201210
В продаже Шаровые краны END-Armaturen Шаровой кран END Armaturen KA110027-RT201210 оптом и в розницу. Нашли дешевле? Предоставьте свою цену, Мы сформируем более выгодное предложение. При заказе от 3000р., доставка по Самаре - БЕСПЛАТНО! Возможна отправка товара в любую точку РФ транспортной компанией.
Цена:
Технические характеристики
2-way ball made of brass with mounting pad according to ISO 5211 and direct mounted electrically actuator. 2-parts body design (screwed), maintenance free, with full cylindrical bore and stamped according to AD-approval A4. For shut-off of neutral gases and liquids.Electric actuator with a rotation angle of 90°. Plastic housing with optical position indicator and manual override by outgoing shaft. With 1-wire control (integrated relay, Fail-close) for OPEN-CLOSE control or 2-wire control for 3-point control. Optical position indicator.For higher temperature ranges over +80°C please refer to the Pressure-Temperature-diagram in the data sheet.The ball valve is also available in many versions in our shop.
- manually operated
- manually operated with mounted limit switch box
- pneumatically operated with mounted pneumatic actuator, double or single acting
- pneumatically operated with mounted pneumatic actuator, limit switch and/or solenoid valve
- electrically operated with mounted electric actuator
| SKU | KA110027-RT201210 |
|---|---|
| Description | Ball valve-KA, 11/2 , with drive-RT20-007, brass/PTFE-FKM, 24V AC / DC, term 7 ... 12sec. |
| Weight [kg] | 2.490000 |
| Voltage | 24V DC |
| Nominal size | 11/2 |
| Body material | Brass |
| Body material | Messing hartverchromt |
| Seals material | PTFE |
| Stem seals material | PTFE/FKM |
| Operation | Electrically |
| Connection type | female / female |
| Connection size | 11/2 |
| Nominal pressure min. [bar] | 0 |
| Nominal pressure max. [bar] | 16 |
| Test pressure PT [bar] | 24 |
| Temperature range min. [°C] | -10 |
| Temperature range max. [°C] | +55 |
| Media temperature min. [°C] | -20 |
| Media temperature max. [°C] | +120 |
| Gehäusedesign | 2-teilig |
