Шаровой кран END Armaturen KA110025-NE034100
В продаже Шаровые краны END-Armaturen Шаровой кран END Armaturen KA110025-NE034100 оптом и в розницу. Нашли дешевле? Предоставьте свою цену, Мы сформируем более выгодное предложение. При заказе от 3000р., доставка по Самаре - БЕСПЛАТНО! Возможна отправка товара в любую точку РФ транспортной компанией.
Цена:
Технические характеристики

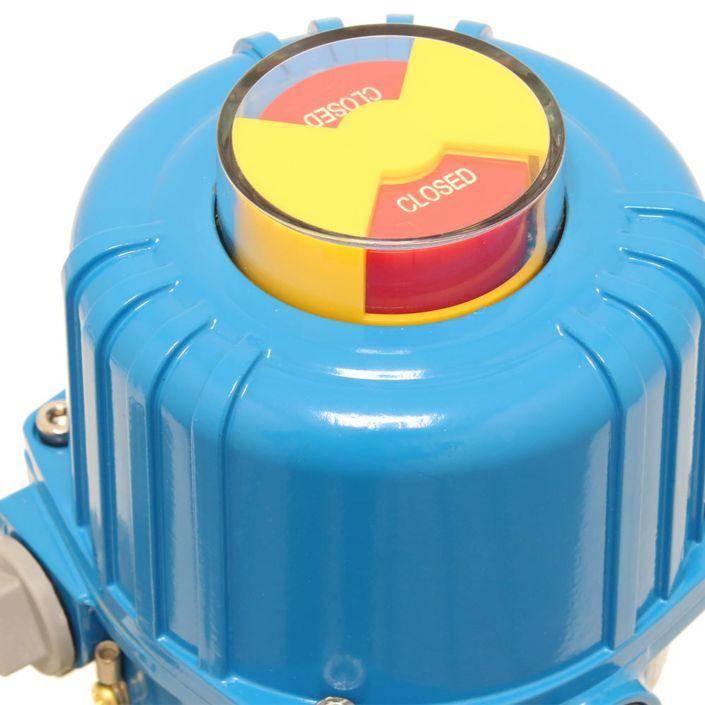

2-way ball made of brass with mounting pad according to ISO 5211 and direct mounted electrically actuator. 2-parts body design (screwed), maintenance free, with full cylindrical bore and stamped according to AD-approval A4. For shut-off of neutral gases and liquids.The actuators model NE are efficient 90 ° electric actuators for the actuation of butterfly valves and ball valves in OPEN-CLOSE operation. All NE-actuators have a solid and waterproof body, thermical overload protection and a heating device preventing condensation to ensure high durability. All standard NE-actuators are equipped with 2 additional limit switches, manual override and an optical position indicator, protected under a glass cap on top of the body.For higher temperature ranges over +80°C please refer to the Pressure-Temperature-diagram in the data sheet.The ball valve is also available in many versions in our shop.
- manually operated
- manually operated with mounted limit switch box
- pneumatically operated with mounted pneumatic actuator, double or single acting
- pneumatically operated with mounted pneumatic actuator, limit switch and/or solenoid valve
- electrically operated with mounted electric actuator
| SKU | KA110025-NE034100 |
|---|---|
| Description | Ball valve-KA, 1 , with drive-NE03, Brass / PTFE FKM, 230V 50Hz, running time 12sec. |
| Weight [kg] | 2.260000 |
| Voltage | 230V AC |
| Nominal size | 1 |
| Body material | Brass |
| Body material | Messing hartverchromt |
| Seals material | PTFE |
| Stem seals material | PTFE/FKM |
| Operation | Electrically |
| Connection type | female / female |
| Connection size | 1 |
| Nominal pressure min. [bar] | 0 |
| Nominal pressure max. [bar] | 16 |
| Test pressure PT [bar] | 24 |
| Temperature range min. [°C] | -20 |
| Temperature range max. [°C] | +70 |
| Media temperature min. [°C] | -20 |
| Media temperature max. [°C] | +120 |
| Gehäusedesign | 2-teilig |
