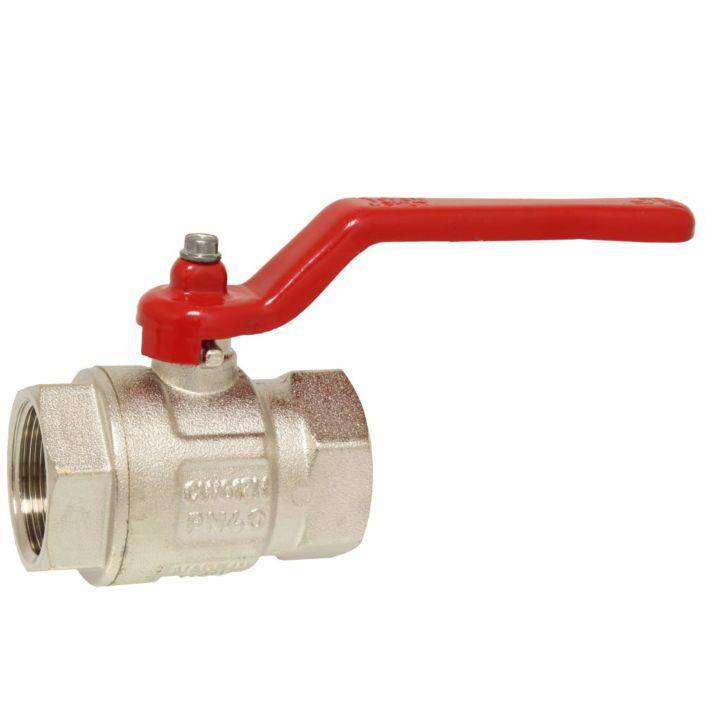

Шаровой кран END Armaturen IL111022
В продаже Шаровые краны END-Armaturen Шаровой кран END Armaturen IL111022 оптом и в розницу. Нашли дешевле? Предоставьте свою цену, Мы сформируем более выгодное предложение. При заказе от 3000р., доставка по Самаре - БЕСПЛАТНО! Возможна отправка товара в любую точку РФ транспортной компанией.
Цена:
Технические характеристики
2-way ball valve made of brass for shut-off of neutral gases and liquids. The body consists of a two screwed body construction with a full cylindrical bore and female thread on both sides.To actuate the ball valve into the OPEN or CLOSED position, the hand lever or butterfly handle is turned through 90°.For higher temperature ranges over +80°C please refer to the Pressure-Temperature-range in the data sheet.The ball valve is also available with NPT-threaded connection up to 2”
| SKU | IL111022 |
|---|---|
| Description | Ball valve 3/8 , PN50, brass / PTFE-NBR / FKM, Female, full bore |
| Weight [kg] | 0.121000 |
| Nominal size | 3/8 |
| Body material | Brass |
| Body material | Messing hartverchromt |
| Seals material | PTFE |
| Stem seals material | FKM/NBR |
| Operation | Hand lever |
| Connection type | female / female |
| Connection size | 3/8 |
| Nominal pressure min. [bar] | 0 |
| Nominal pressure max. [bar] | 50 |
| Test pressure PT [bar] | 75 |
| Temperature range min. [°C] | 0 |
| Temperature range max. [°C] | +60 |
| Media temperature min. [°C] | -20 |
| Media temperature max. [°C] | +150 |
| Gehäusedesign | 2-teilig |
