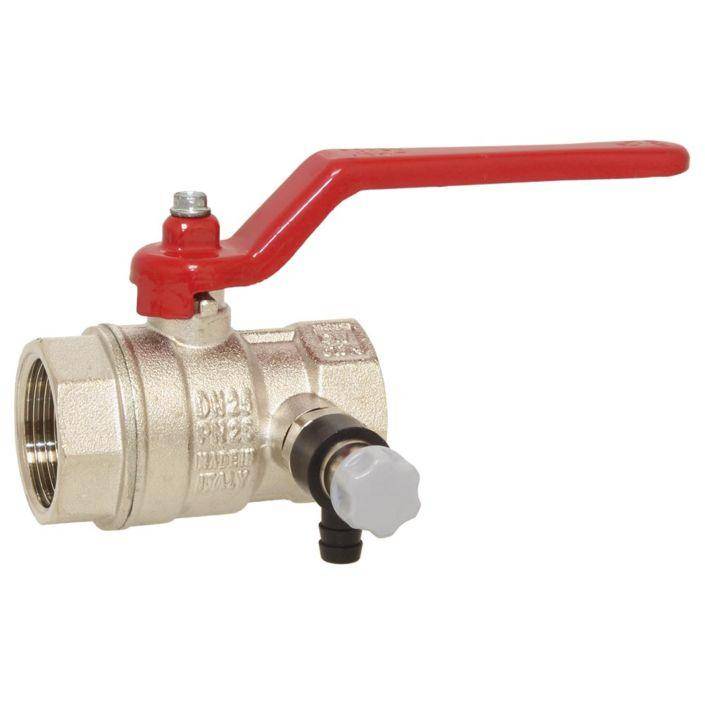

Шаровой кран END Armaturen IE111025
В продаже Шаровые краны END-Armaturen Шаровой кран END Armaturen IE111025 оптом и в розницу. Нашли дешевле? Предоставьте свою цену, Мы сформируем более выгодное предложение. При заказе от 3000р., доставка по Самаре - БЕСПЛАТНО! Возможна отправка товара в любую точку РФ транспортной компанией.
Цена:
Технические характеристики
2-way ball valve made of brass with drain valve. The housing consists of a two-piece screwed body construction with full cylindrical bore and double-sided female thread. The drain valve has a hose nozzle on which a hose can be pushed for easy drainage of the pipeline.To operate the ball valve in OPEN or CLOSE position, turn the handle through 90 °.The ball valve is available in sizes from ˝ to 2 in our online shop.
| SKU | IE111025 |
|---|---|
| Description | Ball valve 1 PN25, brass / PTFE-NBR, Female, with emptying |
| Weight [kg] | 0.496000 |
| Nominal size | 1 |
| Body material | Brass |
| Body material | Messing hartverchromt |
| Seals material | PTFE |
| Stem seals material | NBR |
| Operation | Hand lever |
| Connection type | female / female |
| Connection size | 1 |
| Nominal pressure min. [bar] | 0 |
| Nominal pressure max. [bar] | 25 |
| Test pressure PT [bar] | 37,5 |
| Temperature range min. [°C] | 0 |
| Temperature range max. [°C] | +80 |
| Media temperature min. [°C] | -20 |
| Media temperature max. [°C] | +110 |
| Gehäusedesign | 2-teilig |
