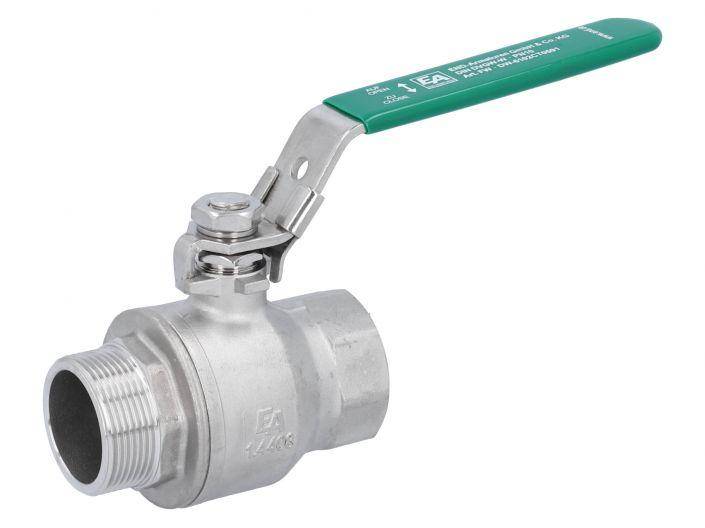

Шаровой кран END Armaturen FW311927
В продаже Шаровые краны END-Armaturen Шаровой кран END Armaturen FW311927 оптом и в розницу. Нашли дешевле? Предоставьте свою цену, Мы сформируем более выгодное предложение. При заказе от 3000р., доставка по Самаре - БЕСПЛАТНО! Возможна отправка товара в любую точку РФ транспортной компанией.
Цена:
Технические характеристики
2-way ball valve made of stainless steel for shut-off of drinkingwater according to DVGW-W570 approval. The body consists of a two screwed body construction with a reduced cylindrical bore.To actuate the ball valve into the OPEN or CLOSED position, the hand lever is turned through 90°.For higher temperature ranges over +80°C please refer to the Pressure-Temperature-range in the data sheet.> The ball valve is available in follow variants and can be ordered online in our shop:
- both sided female thread
- female/male thread
| SKU | FW311927 |
|---|---|
| Description | Ball valve 11/2, DIN-DVGW W570, PN25, stainless steel/PTFE, female/male thread |
| Weight [kg] | 1.420000 |
| Approvales | DVGW-water |
| Ball material | Stainless steel |
| Nominal size | 11/2 |
| Body material | Stainless Steel |
| Body material | Edelstahl |
| Seals material | PTFE |
| Stem seals material | FKM |
| Operation | Hand lever |
| Connection type | female/male |
| Connection size | 11/2 |
| Nominal pressure min. [bar] | 0 |
| Nominal pressure max. [bar] | 25 |
| Test pressure PT [bar] | 37,5 |
| Temperature range min. [°C] | 0 |
| Temperature range max. [°C] | +80 |
| Media temperature min. [°C] | -20 |
| Media temperature max. [°C] | +150 |
| Gehäusedesign | 2-teilig |
