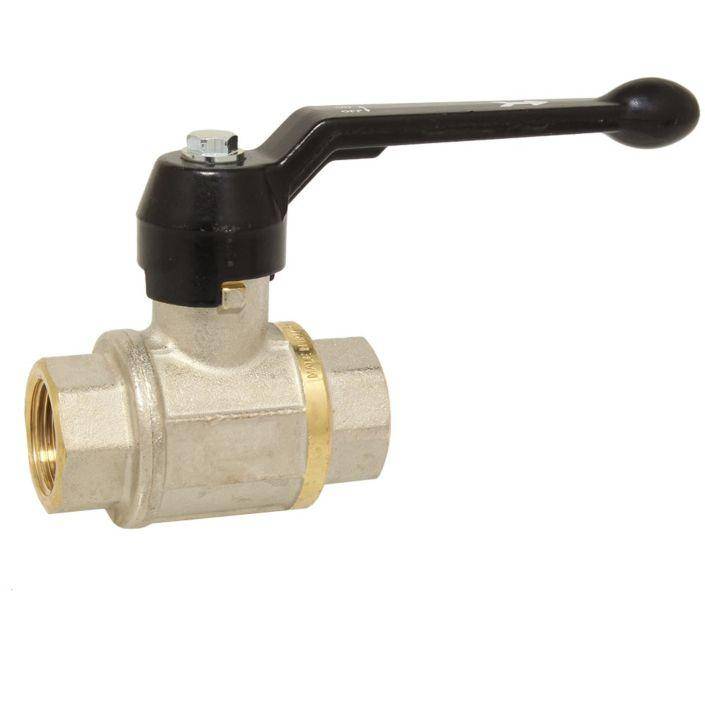

Шаровой кран END Armaturen AL111022
В продаже Шаровые краны END-Armaturen Шаровой кран END Armaturen AL111022 оптом и в розницу. Нашли дешевле? Предоставьте свою цену, Мы сформируем более выгодное предложение. При заказе от 3000р., доставка по Самаре - БЕСПЛАТНО! Возможна отправка товара в любую точку РФ транспортной компанией.
Цена:
Технические характеристики
2-way ball valve made of brass with drain bore for pressed air at the bottom side of the body. The body consists of a two screwed body construction with a full cylindrical bore and female thread on both sides. The handle made of aluminum is black lacqueredTo actuate the ball valve into the OPEN or CLOSED position, the hand lever or butterfly handle is turned through 90°.
| SKU | AL111022 |
|---|---|
| Description | Ball valve 3/8 , PN12, brass / PTFE, with drain, Female, full bore |
| Weight [kg] | 0.240000 |
| Nominal size | 3/8 |
| Body material | Brass |
| Body material | Messing hartverchromt |
| Seals material | PTFE |
| Stem seals material | PTFE |
| Operation | Hand lever |
| Connection type | female / female |
| Connection size | 3/8 |
| Nominal pressure min. [bar] | 0 |
| Nominal pressure max. [bar] | 12 |
| Test pressure PT [bar] | 18 |
| Temperature range min. [°C] | 0 |
| Temperature range max. [°C] | +80 |
| Media temperature min. [°C] | 0 |
| Media temperature max. [°C] | +80 |
| Gehäusedesign | 2-teilig |
