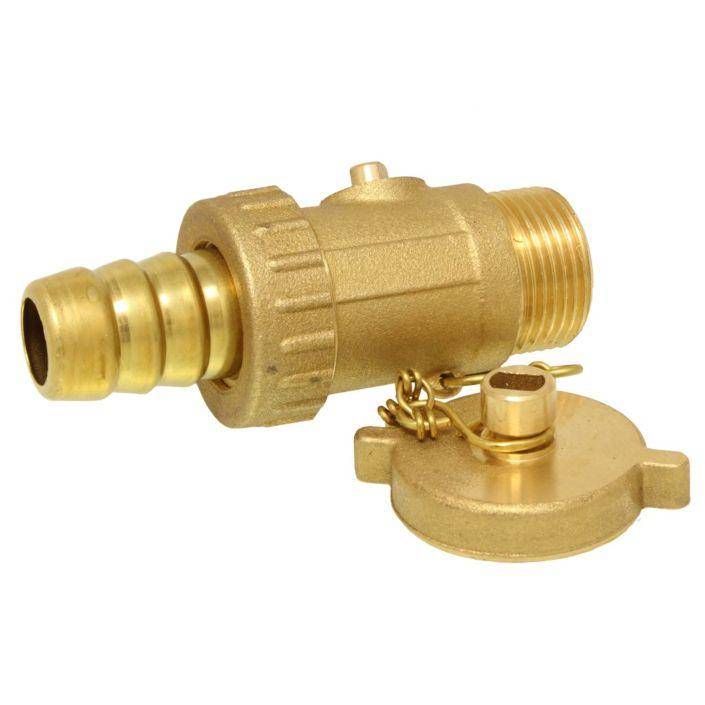

Клапан заполнения и слива END Armaturen KFE11023
В продаже Шаровые краны END-Armaturen Клапан заполнения и слива END Armaturen KFE11023 оптом и в розницу. Нашли дешевле? Предоставьте свою цену, Мы сформируем более выгодное предложение. При заказе от 3000р., доставка по Самаре - БЕСПЛАТНО! Возможна отправка товара в любую точку РФ транспортной компанией.
Цена:
Технические характеристики
2-way refill and drain ball made of brass with cap and hose coupler. Cap with handle function. For shut-off of neutral liquids.To actuate the ball valve into the OPEN or CLOSED position, the cap has to put onto the stem and turned through 90°.
| SKU | KFE11023 |
|---|---|
| Description | Filling and drain valve, 1/2 , PN12, Brass / PTFE-NBR |
| Weight [kg] | 0.136000 |
| Nominal size | 1/2 |
| Body material | Brass |
| Body material | Messing verchromt |
| Seals material | PTFE |
| Stem seals material | NBR |
| Operation | Clamp handle |
| Connection type | female / hose nipple |
| Connection size | 1/2 |
| Nominal pressure min. [bar] | 0 |
| Nominal pressure max. [bar] | 12 |
| Test pressure PT [bar] | 18 |
| Temperature range min. [°C] | 0 |
| Temperature range max. [°C] | +80 |
| Media temperature min. [°C] | -15 |
| Media temperature max. [°C] | +110 |
| Gehäusedesign | 1-teilig |
