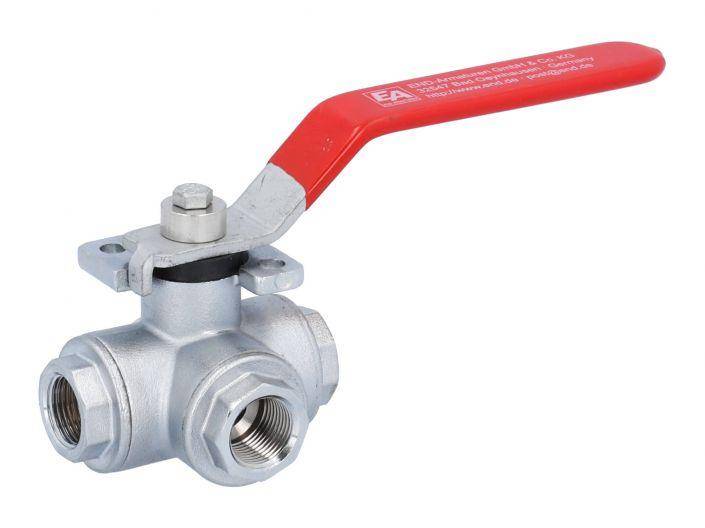

3-ходовой шаровой кран END Armaturen TN111522
В продаже Шаровые краны END-Armaturen 3-ходовой шаровой кран END Armaturen TN111522 оптом и в розницу. Нашли дешевле? Предоставьте свою цену, Мы сформируем более выгодное предложение. При заказе от 3000р., доставка по Самаре - БЕСПЛАТНО! Возможна отправка товара в любую точку РФ транспортной компанией.
Цена:
Технические характеристики
3-way ball valve made of brass for shut-off of neutral gases and liquids (no steam). The body consists of a multi-part screwed body construction, not crossover-free, sealed on all ports, with reduced bore and all-sided female thread. The mounting pad according to ISO 5211 allows direct assembly of pneumatic or electric actuators. The hand lever made of galvanized steel has a red plastic cover.The operation of the ball valve ensued by 90° rotation of the hand lever.Operation methods:For higher temperature ranges over +80°C please refer to the Pressure-Temperature-diagram in the data sheet.The ball valve is available with L- or T-configuration and mounted pneumatic or electric actuator and can be ordered online in our shop.
| SKU | TN111522 |
|---|---|
| Description | 3-way ball valve 3/8 , PN30, brass / PTFE FKM, T-bore, sealed on all |
| Weight [kg] | 0.531000 |
| Nominal size | 3/8 |
| Body material | Brass |
| Body material | Messing verchromt |
| Seals material | PTFE |
| Stem seals material | PTFE/FKM |
| Operation | Hand lever |
| Execution | T-configuration |
| Connection type | female / female |
| Connection size | 3/8 |
| Nominal pressure min. [bar] | 0 |
| Nominal pressure max. [bar] | 30 |
| Test pressure PT [bar] | 45 |
| Temperature range min. [°C] | 0 |
| Temperature range max. [°C] | +80 |
| Media temperature min. [°C] | -20 |
| Media temperature max. [°C] | +120 |
| Gehäusedesign | 4-teilig |
