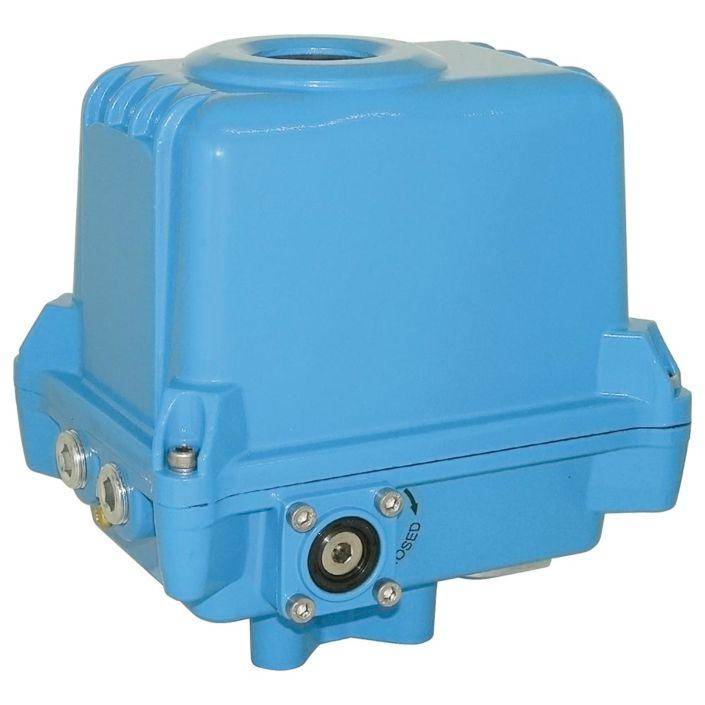

Электрический поворотный привод END Armaturen NE058100

The actuators NE with ATEX approval can be used as an efficient 90 ° electric actuator for the actuation of butterfly valves and ball valves in OPEN-CLOSE operation in explosive atmospheres zone 1, in which occasionally flammable gases or vapors may occur.All NE-actuators have a solid and waterproof body, thermical overload protection and a heating device preventing condensation to ensure high durability.All standard NE-actuators are equipped with 2 additional limit switches, manual override and an optical position indicator that is illuminated in OPEN or CLOSE position by LEDs. The optical position indicator protected under a glass cap on top of the body. Especially for the high requirements in explosive atmospheres, all construction-related body openings are especially sealed.Because of these characteristics this actuator will be suited for demanding tasks, e.g. in:Energy

• Power plants
• Air pollution control
• District heating
• Pipelines

Chemical industry

• Chemical industry
• Petrochemical industry
• Pharmaceutical industry

Water/Wastewater

• Water works
• Sewage treatment plants
• Pumping stations

Others

• Oil- and gas industry
• Air conditioning
• Ship building industry
• Steel mills
• Cement plants
• Foot industry

The actuator NE are equipped with mounting pad according to DIN ISO 5211 for a safe and functional mounting to industrial valves. A generously dimensioned output shaft ensures a secure transmission of the rotation torque to the valve. Two internal threads for cable glands enable electrical connection with separate cables for power supply and control.In our shop, further variants of the electric actuator NE can be ordered online:

• Actuator with higher or lower torque. Up to 3.000Nm on request.
• Actuators with PCU board for positioning operation with analog signal 4…20mA or 0…10V.
• Failsafe actuator with spring return or SuperCap capacitors for safe operation into end position in case of power loss.

Please refer to our technical data sheets for further information and conditions of use!

SKU	NE058100
Description	Electr. Swivel drive, 50Nm, 230V AC, ATEX, NE05, running time 14 sec., Octagon. 14mm
Weight [kg]	5.000000
Voltage	230V AC-ATEX
Torque	50Nm
Body material	0
Stem seals material	0
Temperature range min. [°C]	-20
Temperature range max. [°C]	+70
Gehäusedesign	0
