Привод END Armaturen EE621652

The ED/EE series pneumatic actuator is a high-quality device, developed and manufactured by us. The use of high-quality materials while considering high-quality demands is a guarantee for high operating reliability.Advantages:

• Short-term availability of special types, development, manufacturing, assembly and quality control are completely „Made in Germany“
• Compact design without edges susceptible to pollution
• High-quality coating available from stock
• High pneumatic torque
• Stem and standard parts made of stainless steel
• Anti-blowout stem
• No change of dimensions for actuators with spring-return
• Price-performance ratio
• Simple, standardized mounting, extension or connection of signal transmitters or controlling devices according to EN 12116 (ISO5211)
• Power transmission via precisely performed involute gearing
• All plastic parts with a weight of more than 20 g are marked according to our environment management system DIN EN ISO 14001.

Function DescriptionThe actuator is a pneumatic twin-piston drive, designed primarily for operating ball valves and butterfly valves. A double-action and a spring-return (single-action) type are available. The twin-pistons provides high torque in a compact system. The rotation angle is adjustable by ±6° from the standard setting.DesignDue to the twin-piston system the force developed by the counter-running pistons is transmitted to one common pinion via two tooth racks solidly connected with the pistons. This principle ensures a linear torque transmission along the entire stroke. The integrated spring packages of the single-acting actuators enable, in addition to a simple control, the rotation into a predefined position when the control pressure air or the control voltage fails (failsafe).In our shop, further versions of the pneumatic actuator ED / EE and an extensive range of accessories can be ordered online:

• Actuator with lower or higher torque.
• Actuator with ATEX approval for using in explosive atmospheres.
• Actuator with special surface coatings of the body, example: black anodized, hard-coated, chemical nickel plated and with PTFE-coating.

Please refer to our technical data sheets for further information and conditions of use!

SKU	EE621652

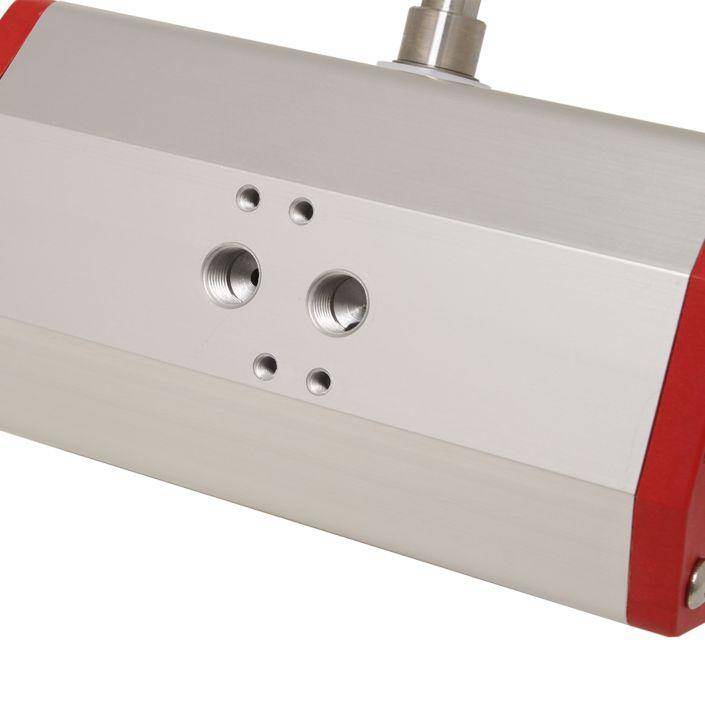

Description	Actuator EW165, DIN, F10/12, octagon 27, pneumatic, spring return
Weight [kg]	19.080000
Nominal size	Ø165
Body material	Aluminium
Function	single acting
Torque	225/402Nm at 6bar pilot pressure
Body material	0
Seals material	NBR - max. 80°C ambient temperature
Stem seals material	0
Media temperature min. [°C]	-20
Media temperature max. [°C]	+80
Gehäusedesign	0
