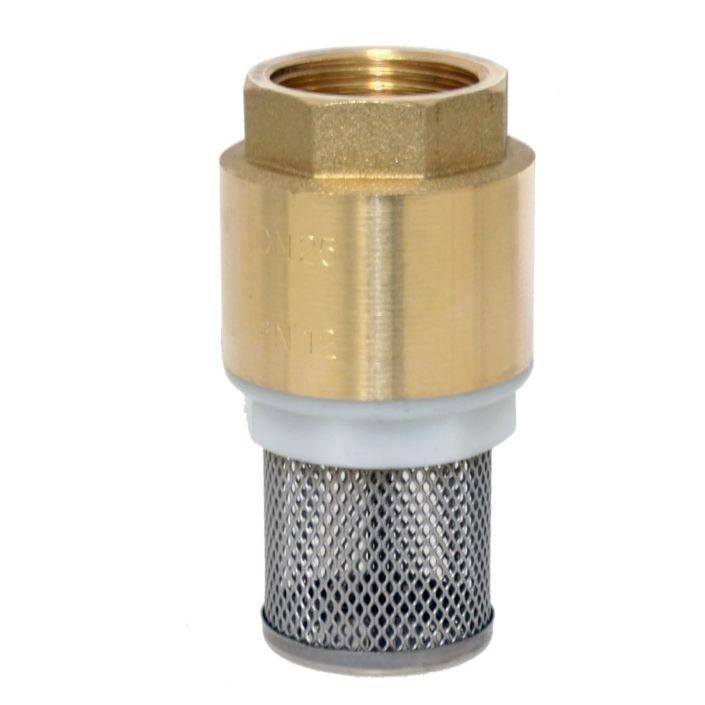

Донный клапан END Armaturen TK120829
В продаже Обратные клапаны END-Armaturen Донный клапан END Armaturen TK120829 оптом и в розницу. Нашли дешевле? Предоставьте свою цену, Мы сформируем более выгодное предложение. При заказе от 3000р., доставка по Самаре - БЕСПЛАТНО! Возможна отправка товара в любую точку РФ транспортной компанией.
Цена:
Технические характеристики
Foot valves for use in suction lines for effective suction of the medium. The integrated non-return valve prevents the suction line from draining when the pump is switched off. The suction line thus remains filled with medium, whereby the pump can suck in the medium immediately and does not have to be vented first. For the lowest possible flow loss, the foot valves are designed as a disc valve.Coarse contaminants are retained by the filter and thus serve to protect the downstream components from dirt particles.They are suitable for water supply, heating, air conditioning and compressed air systems.To ensure safe operation of the entire system, foot valves should always maintain a sufficient distance from the bottom of the sump and at the lowest level of suction water.
| SKU | TK120829 |
|---|---|
| Description | Foot valve 21/2 , brass, NBR polymer PN6, Stainless steel filter, temp .: -20 º C to + 100 º |
| Weight [kg] | 1.140000 |
| Strainer | Stainless steel |
| Nominal size | 21/2 |
| Body material | Brass |
| Body material | 0 |
| Seals material | NBR |
| Stem seals material | 0 |
| Connection type | Threaded Connection |
| Connection size | 21/2 |
| Nominal pressure min. [bar] | max. |
| Nominal pressure max. [bar] | 6 |
| Test pressure PT [bar] | 15 |
| Media temperature min. [°C] | -20 |
| Media temperature max. [°C] | +100 |
| Gehäusedesign | 0 |
