Монтажный комплект END Armaturen FS400408
В продаже Монтажные аксессуары Монтажный комплект END Armaturen FS400408 оптом и в розницу. Нашли дешевле? Предоставьте свою цену, Мы сформируем более выгодное предложение. При заказе от 3000р., доставка по Самаре - БЕСПЛАТНО! Возможна отправка товара в любую точку РФ транспортной компанией.
Технические характеристики

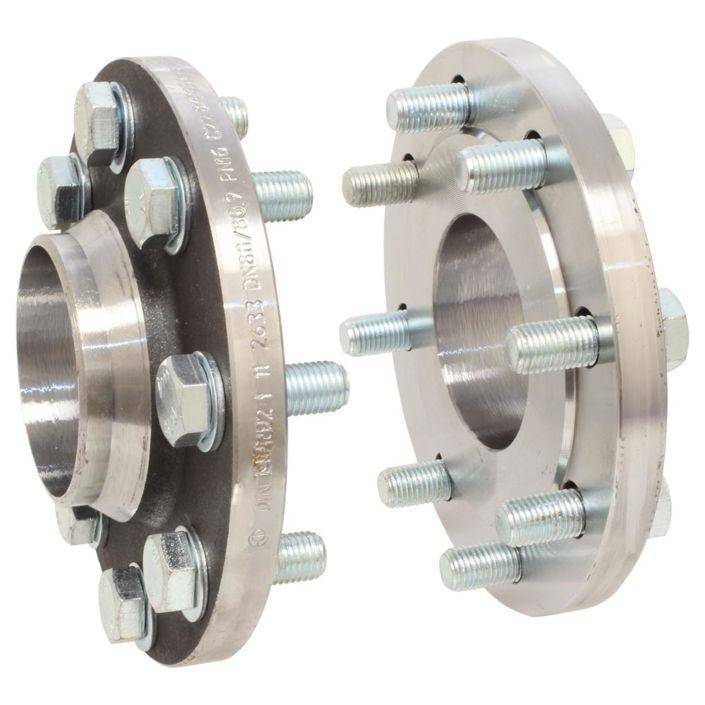

Mounting kits for flange valves, matched to the respective body types. Complete with flanges, screws, washers and hexagon nuts (where required).For ball valves in standard or wafer-type design and butterfly valves with center body or LUG-type body design.
| Welded flange: | conform with EN 1092-1 type 11 with sealing surface B1 |
| Material: | • Flange: Steel 22.8 (A 105) |
| Screws, washers, nuts: steel, zinc-plated |
| • Flange: Stainless steel 1.4571 |
| Screws, washers, nuts: stainless steel |
| Pressure range: | PN16 |
| SKU | FS400408 |
|---|
| Description | Mounting set DN65, PN16, steel 8.22, EA Compact ball valve Type: VK, ZK, WK |
|---|
| Weight [kg] | 6.760000 |
|---|
| Material | Carbon Steel |
|---|
| Nominal size | DN065 |
|---|
| Body material | 0 |
|---|
| Stem seals material | 0 |
|---|
| Execution | Wafer-type ball valve |
|---|
| Connection size | DN65 |
|---|
| Nominal pressure min. [bar] | 0 |
|---|
| Nominal pressure max. [bar] | 16 |
|---|
| Test pressure PT [bar] | 24 |
|---|
| Temperature range min. [°C] | 0 |
|---|
| Temperature range max. [°C] | +80 |
|---|
| Media temperature min. [°C] | -30 |
|---|
| Media temperature max. [°C] | +180 |
|---|
| Gehäusedesign | 0 |
|---|
