ACE PN125-40-3-6B
В продаже Зажимные элементы ACE ACE PN125-40-3-6B оптом и в розницу. Нашли дешевле? Предоставьте свою цену, Мы сформируем более выгодное предложение. При заказе от 3000р., доставка по Самаре - БЕСПЛАТНО! Возможна отправка товара в любую точку РФ транспортной компанией.
Цена:
Технические характеристики

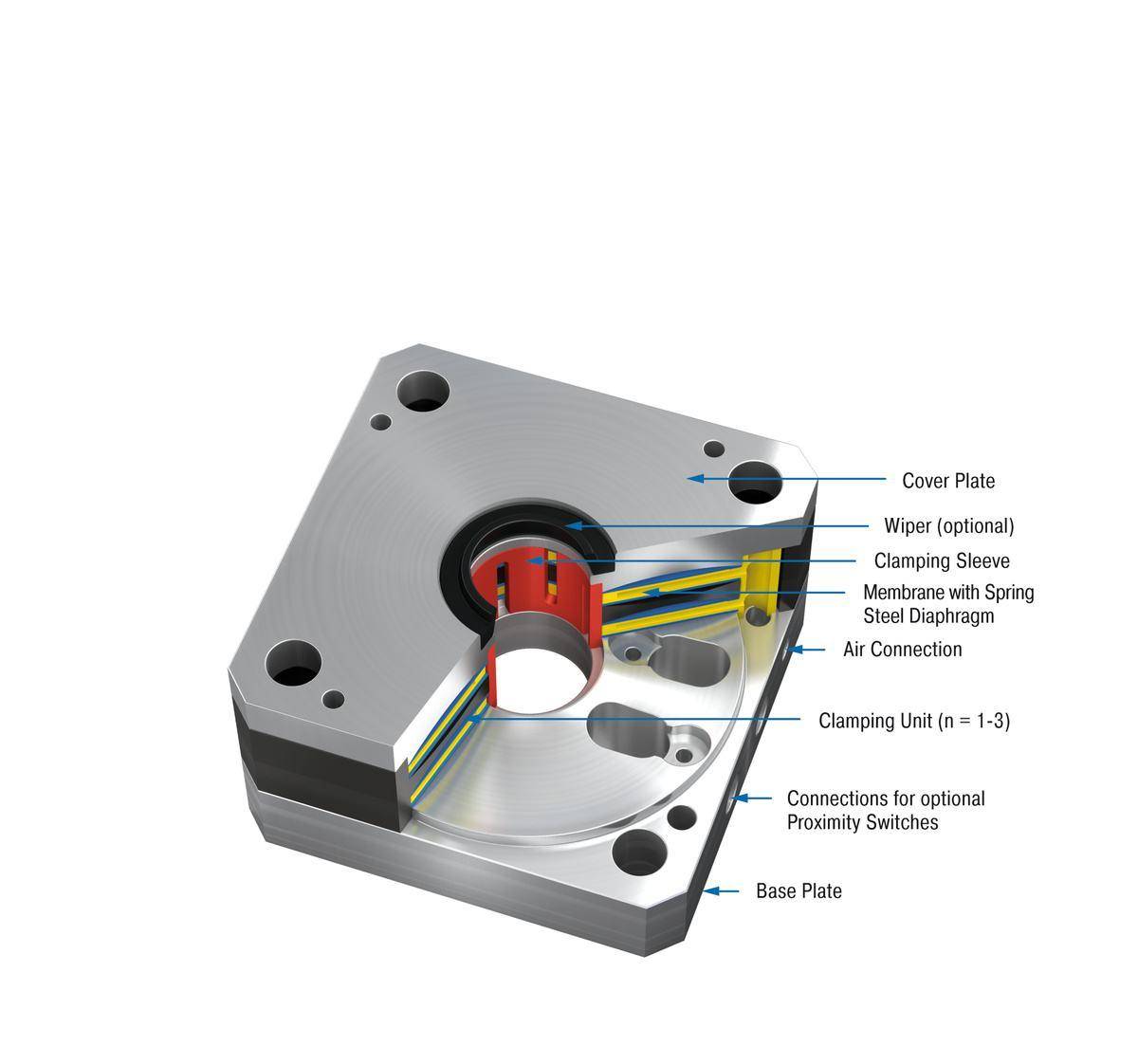

Pneumatic Rod Clamping Holding force 27,000 N Holding torque 540 Nm Technical data
| Holding torque 540 Nm Holding force 27,000 N Operating pressure 6 bar Rod diameter O 20 mm to O 40 mm Clamping cycles 1,000,000 Mounting in any position Material Outer body: tool steel Pneumatic medium dried, filtered air Operating temperature range 10 °C to 45 °C | Note When mounting, use hardened piston rod. On request Special designs as for example special diameters and accessories available on request. Also available are versions matching to ISO pneumatic cylinders including base plates coordinated to the dimensions of the flange sizes of standard cylinders according to ISO 15552. |
