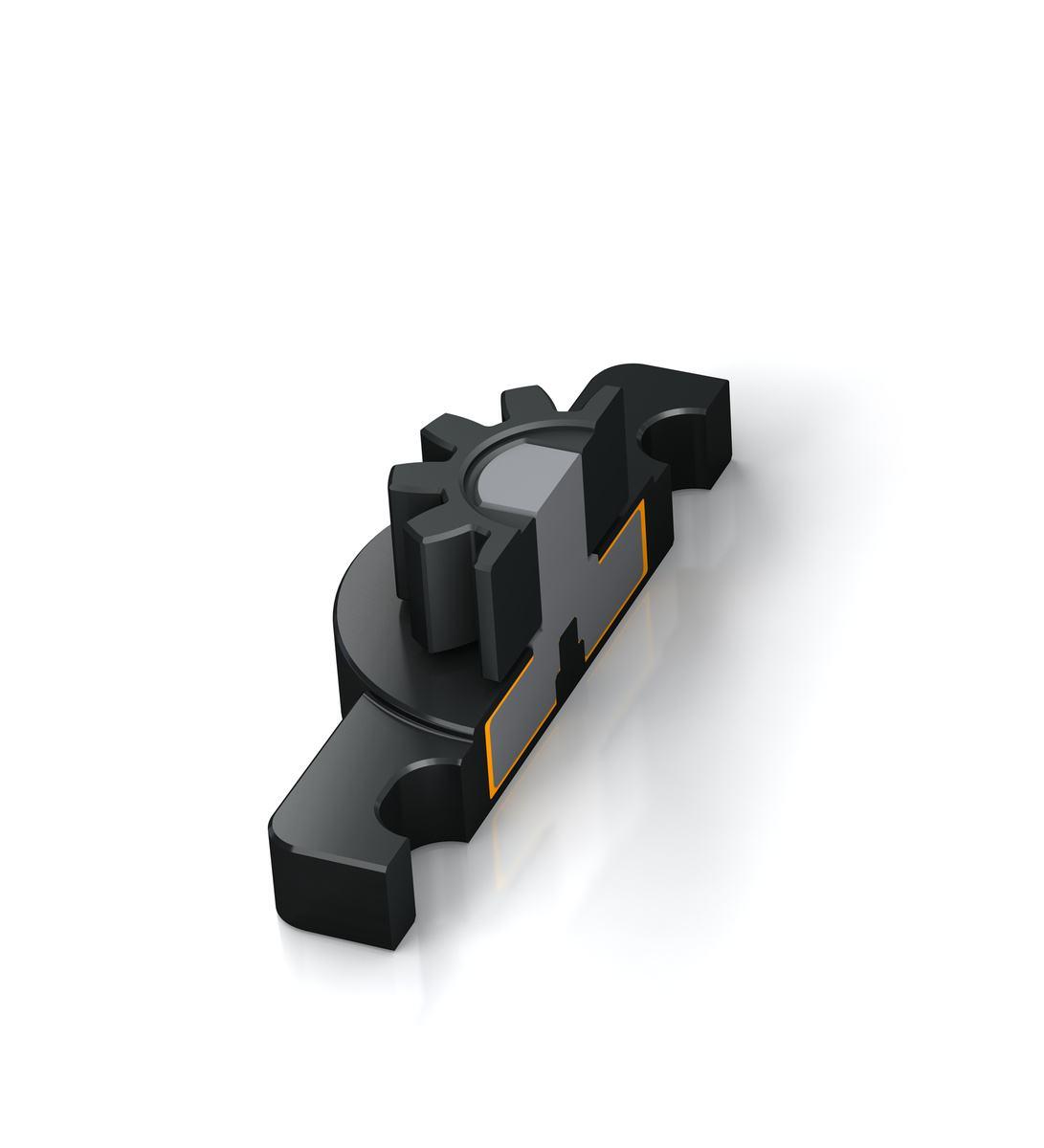

ACE FRT-E2-100
В продаже Ротационные Демпферы ACE ACE FRT-E2-100 оптом и в розницу. Нашли дешевле? Предоставьте свою цену, Мы сформируем более выгодное предложение. При заказе от 3000р., доставка по Самаре - БЕСПЛАТНО! Возможна отправка товара в любую точку РФ транспортной компанией.
Цена:
Технические характеристики
Continuous Rotation Damping torque 0.10 +/- 0.05 Ncm Technical data
| Damping torque 0.10 +/- 0.05 Ncm Damping direction bidirectional Gear without Construction size O 10 mm Rotational speed max. 50 rpm Lifetime 50,000 cycles (1 cycle = 360° left-hand, 360° right-hand). Even after this time, the dampers still produce over approx. 80 % of their original damping moment. The service life may be significantly higher or lower, depending on the application. Operating temperature range 0 °C to 50 °C Pressure angle 20° Material Outer body, Shaft, Gear: plastic Mounting in any position Tooth Involute gearing P.C.D. 6 mm No. of teeth 10 Module 0.6 | Mounting information No axial or radial forces may be induced via the shaft. Safety information Do not use rotary dampers as supports. Provide an external guide or support. On request Special designs available on request. Toothed plastic racks (modules 0.5 to 1.0) are available for the rotary dampers with pinions. |
