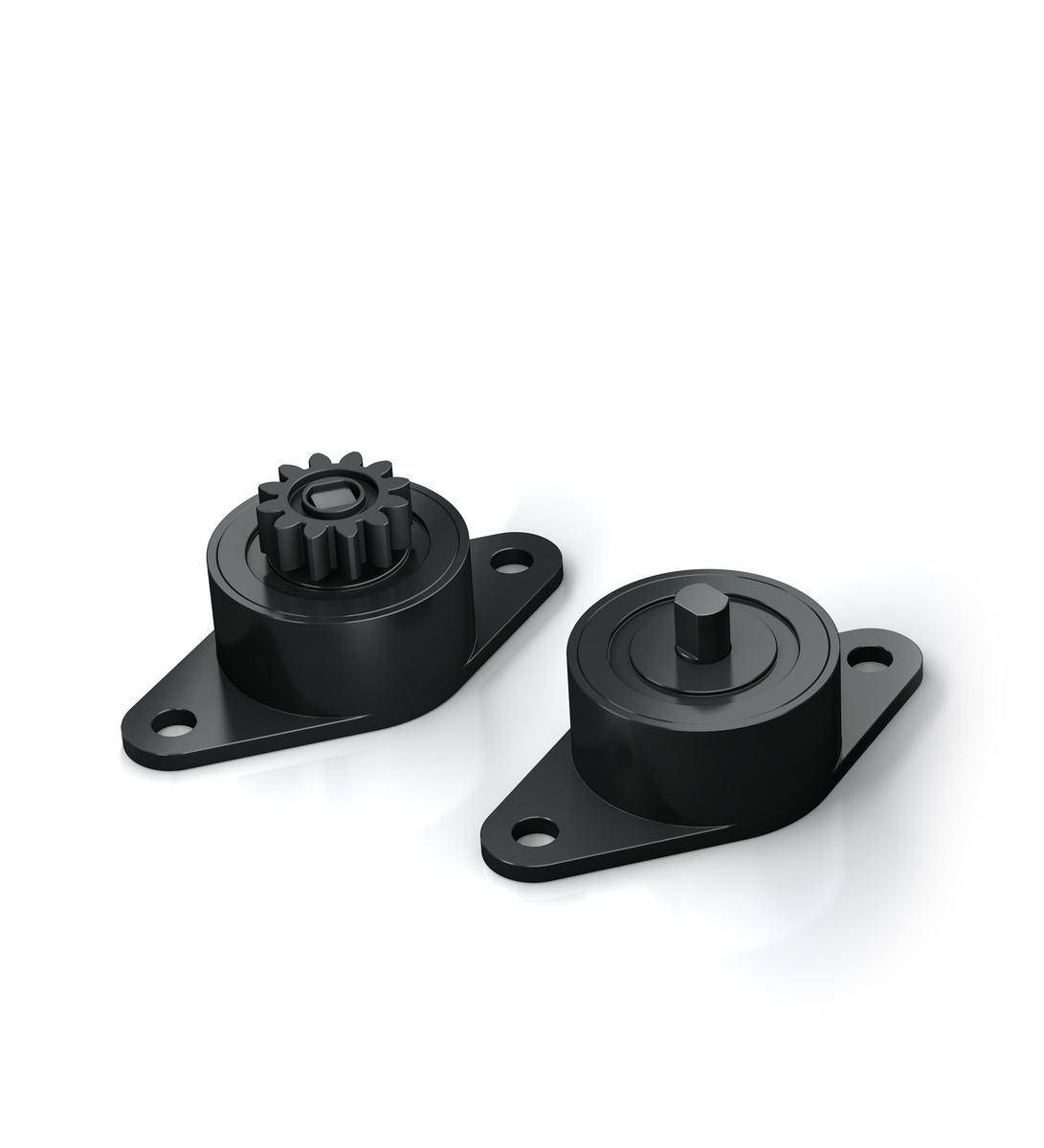

ACE FRN-D2-R152
В продаже Ротационные Демпферы ACE ACE FRN-D2-R152 оптом и в розницу. Нашли дешевле? Предоставьте свою цену, Мы сформируем более выгодное предложение. При заказе от 3000р., доставка по Самаре - БЕСПЛАТНО! Возможна отправка товара в любую точку РФ транспортной компанией.
Цена:
Технические характеристики
Continuous Rotation Damping torque 15 +/- 3 Ncm Technical data
| Damping torque 15 +/- 3 Ncm Damping direction right Gear without Construction size O 25 mm Rotational speed max. 50 rpm Lifetime 50,000 cycles (1 cycle = 360° left-hand, 360° right-hand). Even after this time, the dampers still produce over approx. 80 % of their original damping moment. The service life may be significantly higher or lower, depending on the application. Operating temperature range 0 °C to 50 °C Pressure angle 20° Material Outer body: plastic, Shaft: steel Mounting in any position Tooth Involute gearing (addendum modification coefficient: +0.375) P.C.D. 12 mm No. of teeth 12 Module 1 | Mounting information No axial or radial forces may be induced via the shaft. Safety information Do not use rotary dampers as supports. Provide an external guide or support. On request Special designs available on request. Toothed plastic racks (modules 0.5 to 1.0) are available for the rotary dampers with pinions. |
