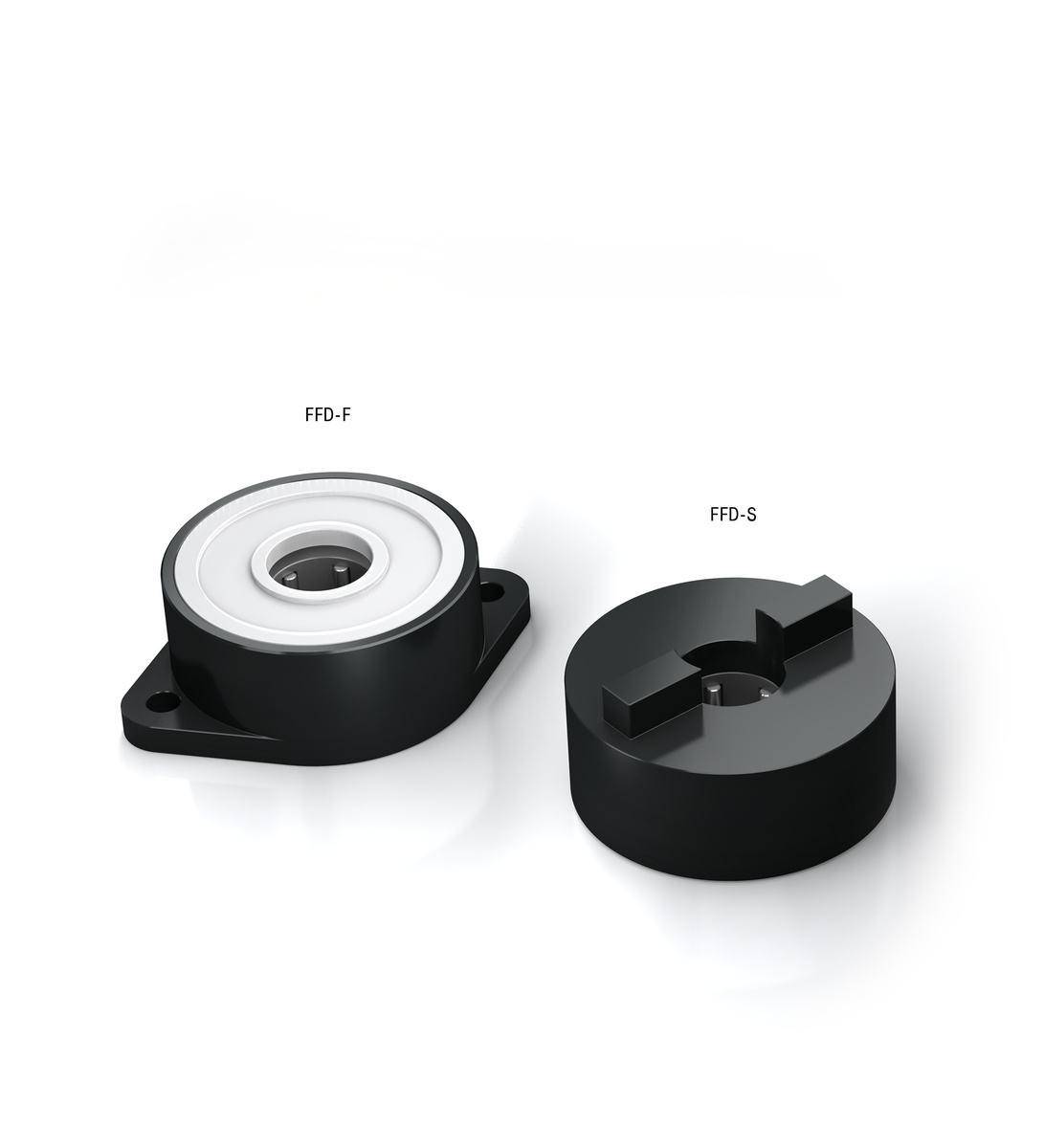

ACE FFD-30SW-L153
В продаже Ротационные Демпферы ACE ACE FFD-30SW-L153 оптом и в розницу. Нашли дешевле? Предоставьте свою цену, Мы сформируем более выгодное предложение. При заказе от 3000р., доставка по Самаре - БЕСПЛАТНО! Возможна отправка товара в любую точку РФ транспортной компанией.
Цена:
Технические характеристики
Continuous Rotation Damping torque 1.5 Nm Technical data
| Execution standard assembly, bi-directional bearing Damping torque 1.5 Nm Damping direction left Construction size O 25 mm to 30 mm Rotational speed max. 30 rpm Lifetime 30,000 cycles (1 cycle = 360° left-hand, 360° right-hand). Even after this time, the dampers still produce over approx. 80 % of their original damping moment. The service life may be significantly higher or lower, depending on the application. Operating temperature range -10 °C to +60 °C Material Outer body: plastic Mounting in any position Information to the shaft O +0 / -0.03 Hardness > HRC55, surface smoothness RZ< 1µm mm | Mounting information Turn the shaft in the opposite direction to the brake direction to avoid damaging the freewheel mount. No axial or radial forces may be induced via the shaft. Safety information Do not use rotary dampers as supports. Provide an external guide or support. On request Special designs available on request. |
