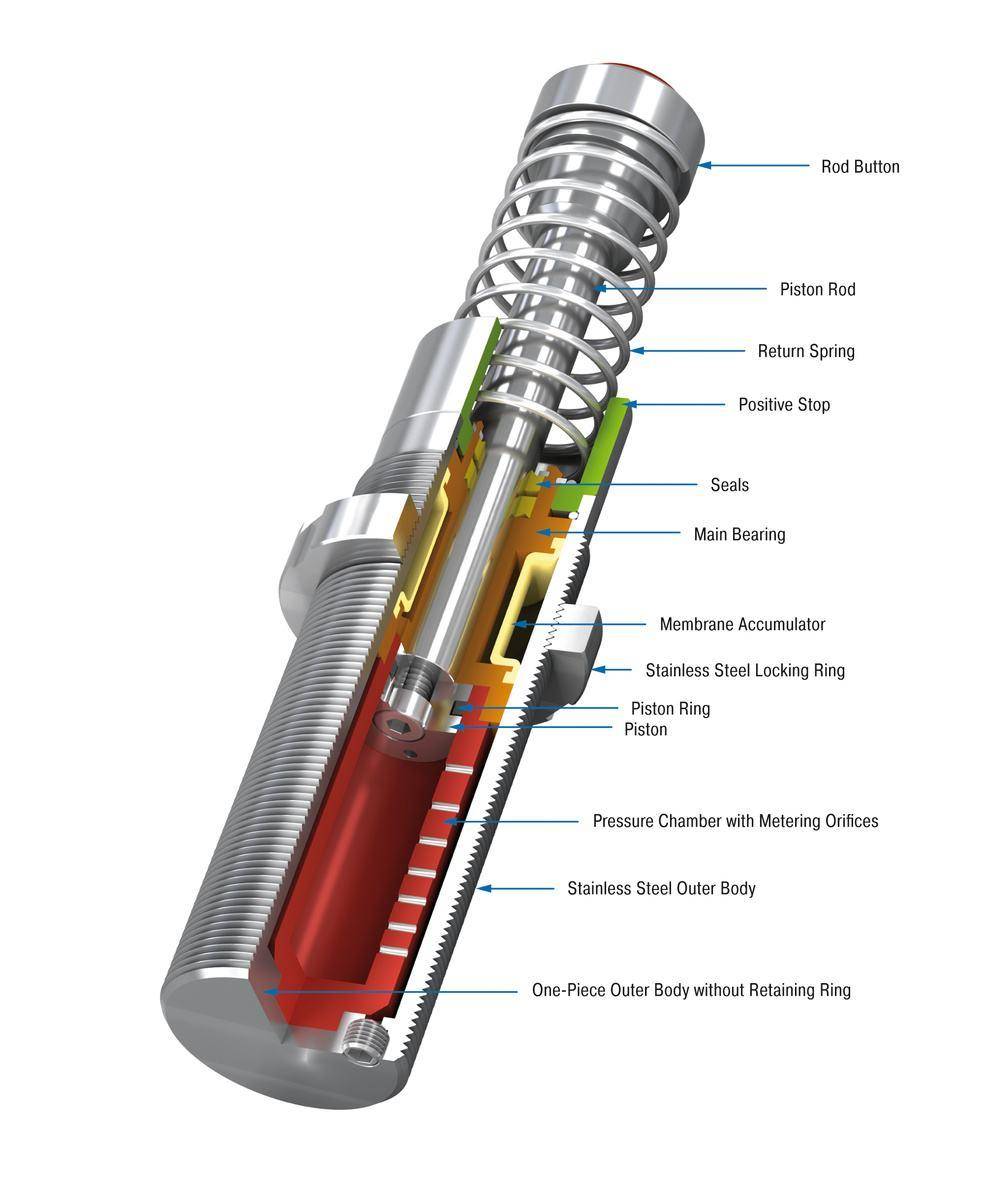

ACE MC4575EUM-0-V4A
В продаже Промышленные амортизаторы ACE ACE MC4575EUM-0-V4A оптом и в розницу. Нашли дешевле? Предоставьте свою цену, Мы сформируем более выгодное предложение. При заказе от 3000р., доставка по Самаре - БЕСПЛАТНО! Возможна отправка товара в любую точку РФ транспортной компанией.
Цена:
Технические характеристики
Self-Compensating, Stainless Steel Energy capacity 1,130 Nm/cycle Stroke 73.9 mm Technical data
| Energy capacity 1,130 Nm/cycle Energy capacity 146,000 Nm/h Effective weight min. 20 kg Effective weight max. 80 kg Return Force max. 180 N Return Force min. 50 N Return Time 0.11 s Side Load Angle max. 2 ° Impact velocity range 0.15 m/s to 5 m/s. Other speeds on request. Operating temperature range -12 °C to +66 °C. Other temperatures on request. Mounting in any position Positive stop Integrated Material Outer body, Main bearing, Accessories, Locking ring: stainless steel (1.4404, AISI 316L), Piston rod: hard chrome plated steel, Rod end button: stainless steel (1.4404, AISI 316L) with elastomer insert, Return spring: stainless steel Damping medium special oil NSF-H1 approved | Note Impact button (PP) for noise reduction included. For emergency use only applications and for continous use (with additional cooling) it is sometimes possible to exceed the published max. capacity ratings. In this case, please consult ACE. Safety information External materials in the surrounding area can attack the seal components and lead to a shorter service life. Please contact ACE for appropriate solution suggestions. Do not paint the shock absorbers due to heat emission. On request Special oils, other special options and special accessories are available on request. |
