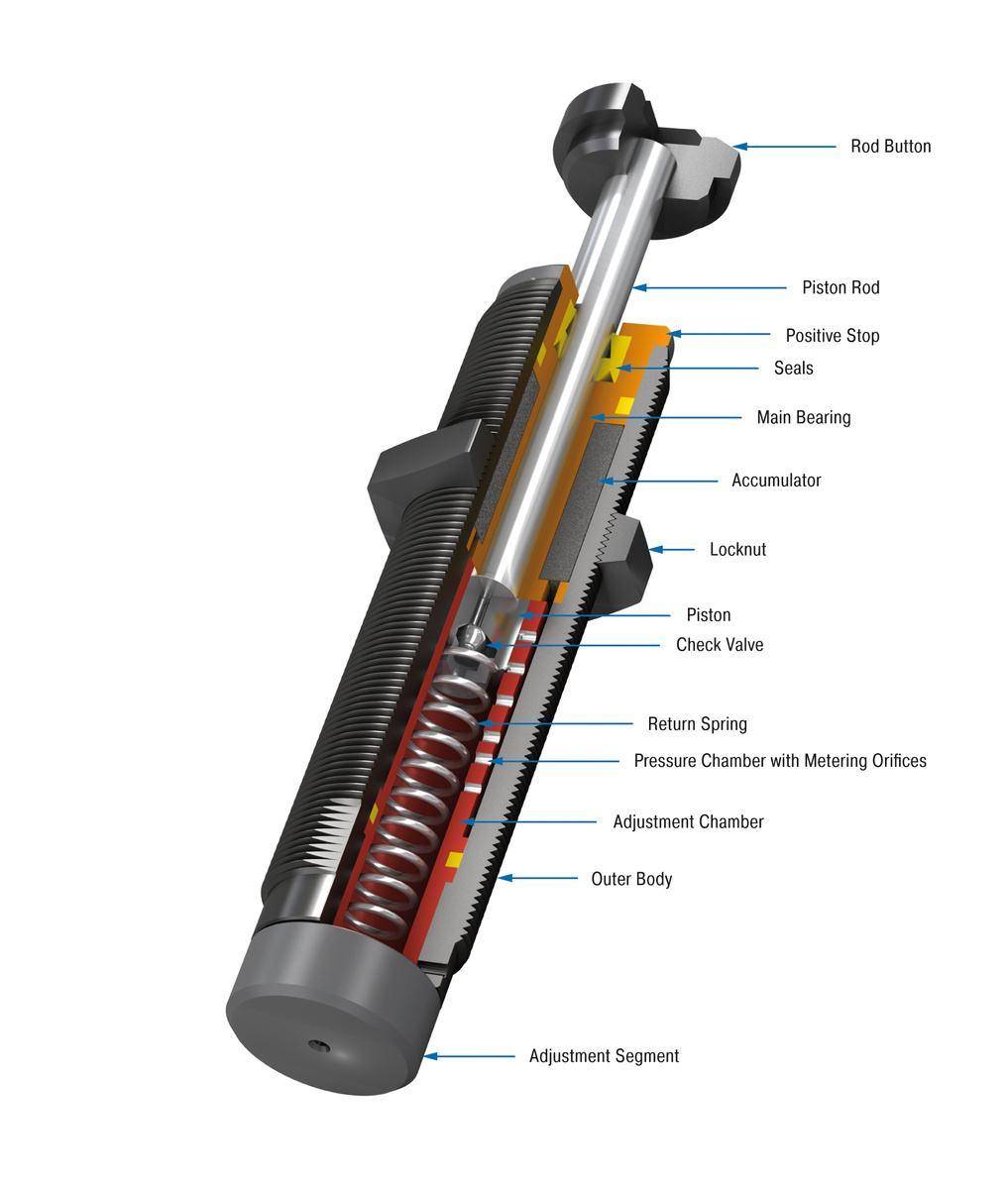

ACE MA35EUM
В продаже Гидравлический контроль подачи ACE ACE MA35EUM оптом и в розницу. Нашли дешевле? Предоставьте свою цену, Мы сформируем более выгодное предложение. При заказе от 3000р., доставка по Самаре - БЕСПЛАТНО! Возможна отправка товара в любую точку РФ транспортной компанией.
Цена:
Технические характеристики
Adjustable Energy capacity 4.0 Nm/cycle Stroke 10.2 mm Technical data
| Energy capacity 4.0 Nm/cycle Energy capacity 6,000 Nm/h Effective weight min. 6.00 kg Effective weight max. 57 kg Return Force min. 5.0 N Return Force max. 11.0 N Return Time 0.2 s Side Load Angle max. 2 ° Impact velocity range 0.15 m/s to 4.5 m/s. Other speeds on request. Operating temperature range 0 °C to 66 °C Mounting in any position Positive stop Integrated Adjustment Hard impact at the start of stroke, adjust the ring towards 9 or PLUS. Hard impact at the end of stroke, adjust the ring towards 0 or MINUS. Material Outer body: nitride hardened steel, Piston rod: steel with black oxide finish or nitride hardened Damping medium oil, temperature stable | Note If precise end position datum is required consider use of the stop collar type AH. Shock absorber is preset at delivery in a neutral position between hard and soft. Safety information External materials in the surrounding area can attack the seal components and lead to a shorter service life. Please contact ACE for appropriate solution suggestions. Do not paint the shock absorbers due to heat emission. On request Nickel-plated or other special options available to special order. Models without rod end button. |
