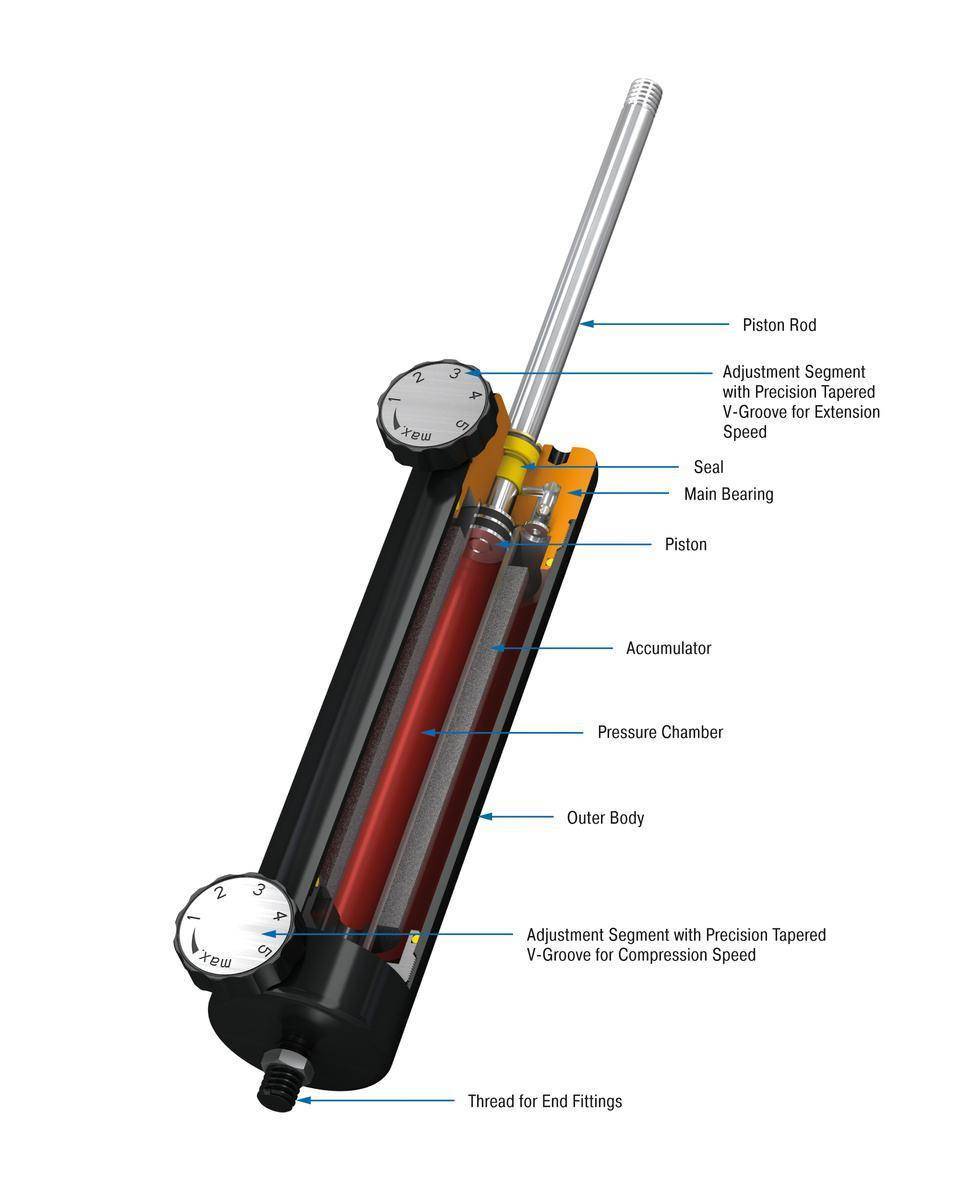

ACE HBD-85-200
В продаже Гидравлические демпферы ACE ACE HBD-85-200 оптом и в розницу. Нашли дешевле? Предоставьте свою цену, Мы сформируем более выгодное предложение. При заказе от 3000р., доставка по Самаре - БЕСПЛАТНО! Возможна отправка товара в любую точку РФ транспортной компанией.
Цена:
Технические характеристики
Adjustable, Without Free Travel Compression force max. 20,000 N Stroke 200 mm Technical data
| Compression force max. 20,000 N Traction force max. 50,000 N Outer body diameter O 85 mm mm Piston rod diameter O 20 mm Lifetime Approx. 10,000 m Operating temperature range 0 °C to 65 °C Adjustment Steplessly adjustable Positive stop External positive stops 2 mm to 3 mm before the end of stroke provided by the customer. Damping medium hydraulic oil Material Outer body: coated steel, Piston rod: hard chrome plated steel, End fittings: zinc plated steel Mounting in any position | Note Increased break-away force if unit has not moved for some time. Thread adaptor for piston rod from M16 to M24 included. End fittings They are interchangeable and if necessary must be positively secured by the customer to prevent unscrewing. On request Special oils and other special options. Alternative accessories available on request. |
