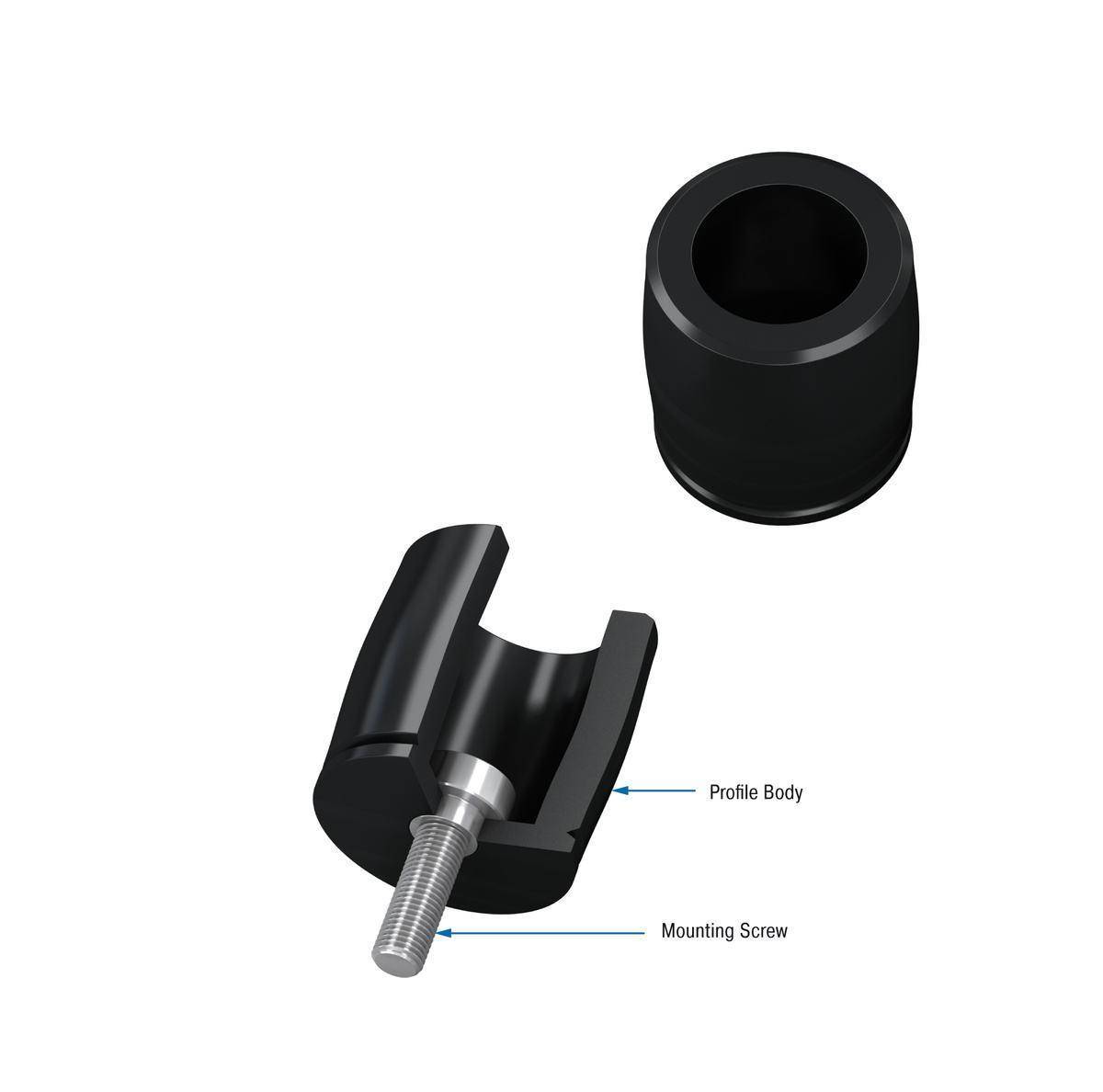

ACE TS48-25
В продаже Демпферы профиля ACE – Официальный дилер в России ACE TS48-25 оптом и в розницу. Нашли дешевле? Предоставьте свою цену, Мы сформируем более выгодное предложение. При заказе от 3000р., доставка по Самаре - БЕСПЛАТНО! Возможна отправка товара в любую точку РФ транспортной компанией.
Цена:
Технические характеристики
Axial Soft Damping Energy capacity 81.0 Nm/cycle Stroke max. 25 mm Technical data
| Energy capacity 81.0 Nm/cycle Energy capacity emergency use 91 Nm/cycle Energy absorption 35 % to 64 % Dynamic force range 533 N to 23,500 N Operating temperature range -40 °C to +90 °C Construction size 14 mm to 107 mm Mounting in any position Material hardness rating Shore 40D Shore Material Profile body: co-polyester elastomer Environment Resistant to microbes, seawater or chemical attack. Excellent UV and ozone resistance. Material does not absorb water or swell. Impact velocity range Max. 5 m/s Torque max. M4: 1.7 Nm M5: 2.3 Nm M6: 6 Nm M12: 50 Nm M16: 120 Nm | Note Suitable for emergency stop applications and for continous use. For applications with preloading and increased temperatures please consult ACE. Safety information Mounting screw should additionally be secured with Loctite. On request Special strokes, -characteristics, -spring rates, -sizes and -materials. |
