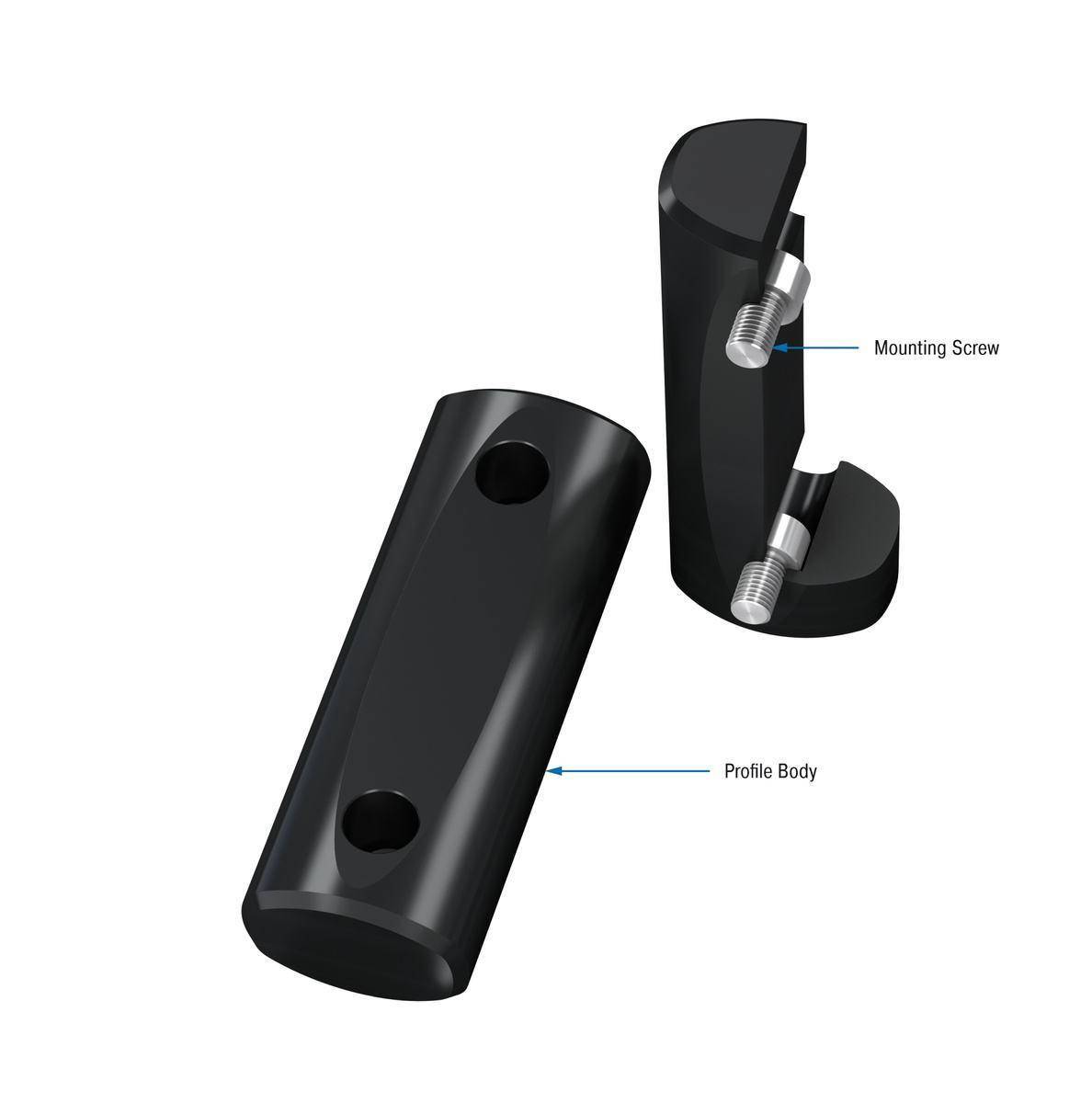

ACE TR93-24HD
В продаже Демпферы профиля ACE – Официальный дилер в России ACE TR93-24HD оптом и в розницу. Нашли дешевле? Предоставьте свою цену, Мы сформируем более выгодное предложение. При заказе от 3000р., доставка по Самаре - БЕСПЛАТНО! Возможна отправка товара в любую точку РФ транспортной компанией.
Цена:
Технические характеристики
Radial Damping, Heavy Duty Version Energy capacity 3,421 Nm/cycle Stroke max. 24 mm Technical data
| Energy capacity 3,421 Nm/cycle Energy capacity emergency use 4,789 Nm/cycle F max. static 302,500 N Energy absorption 43 % to 72 % Dynamic force range 78.800 N to 812,900 N Operating temperature range -40 °C to +90 °C Construction size 42 mm to 117 mm Mounting in any position Material hardness rating Shore 40D, Shore 55D Shore Material Profile body: co-polyester elastomer Environment Resistant to microbes, seawater or chemical attack. Excellent UV and ozone resistance. Material does not absorb water or swell. Impact velocity range Max. 5 m/s Torque max. M10: 7 Nm M12: 12 Nm | Note Suitable for emergency stop applications and for continous use. For applications with preloading and increased temperatures please consult ACE. Safety information Mounting screw should additionally be secured with Loctite. On request Special strokes, -characteristics, -spring rates, -sizes and -materials. |
