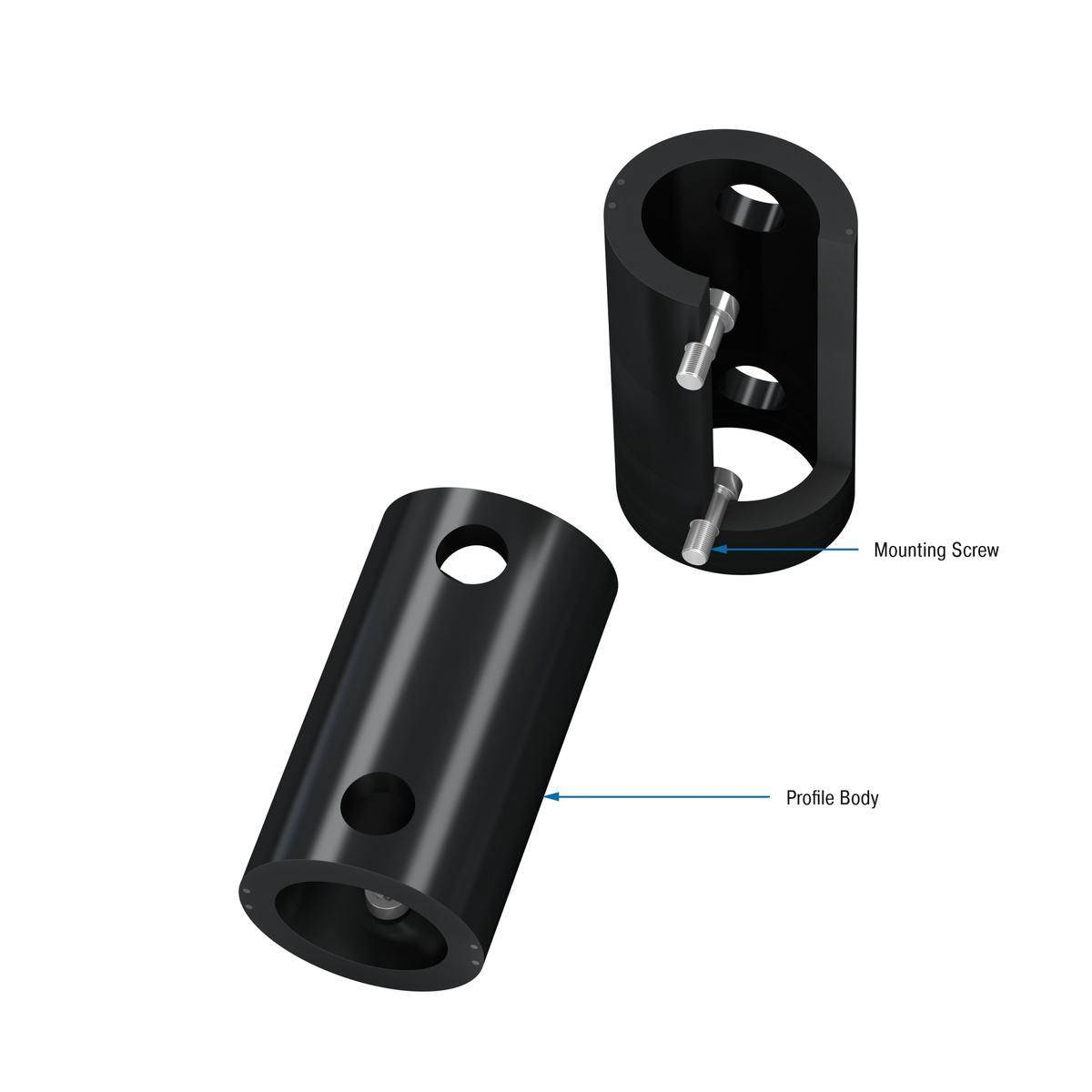

ACE TR143-86L-5
В продаже Демпферы профиля ACE – Официальный дилер в России ACE TR143-86L-5 оптом и в розницу. Нашли дешевле? Предоставьте свою цену, Мы сформируем более выгодное предложение. При заказе от 3000р., доставка по Самаре - БЕСПЛАТНО! Возможна отправка товара в любую точку РФ транспортной компанией.
Цена:
Технические характеристики
Radial Damping, Long Version Energy capacity 3,000.0 Nm/cycle Stroke max. 86 mm Technical data
| Energy capacity 3,000.0 Nm/cycle Energy capacity emergency use 4,200.0 Nm/cycle Energy absorption 26 % to 41 % Dynamic force range 1,312 N to 217,700 N Operating temperature range -40 °C to +90 °C Construction size 29 mm to 188 mm Mounting in any position Material hardness rating Shore 55D Shore Material Profile body: co-polyester elastomer Environment Resistant to microbes, seawater or chemical attack. Excellent UV and ozone resistance. Material does not absorb water or swell. Impact velocity range Max. 5 m/s Torque max. M5: 3 Nm M8: 20 Nm M16: 40 Nm (DIN912) M16: 120 Nm (shouldered screw) | Note Suitable for emergency stop applications and for continous use. For applications with preloading and increased temperatures please consult ACE. Safety information Mounting screw should additionally be secured with Loctite. On request Special strokes, -characteristics, -spring rates, -sizes and -materials. |
